00182OS1AEC56

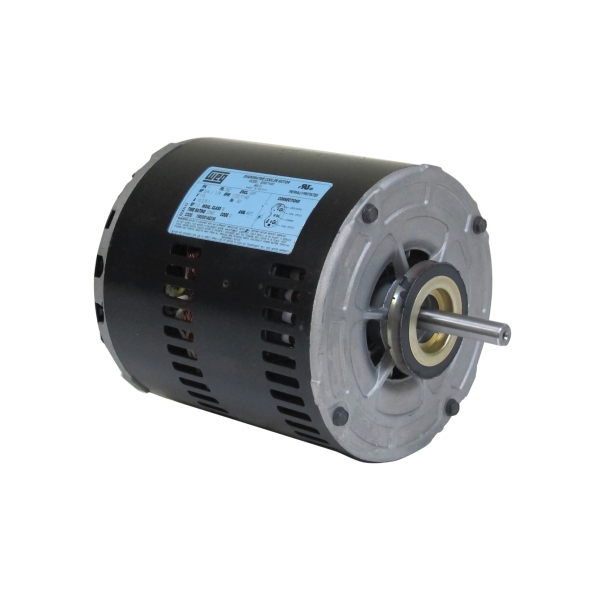

WEG 00182OS1AEC56 Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 1/0.33 hp, 115 VAC, 60 Hz, 1 ph Phase, 56 Frame, 1800/1200 rpm Speed, Footed Mount
- CP#:
- Item#: 567631
- Mfr#: 00182OS1AEC56
- High starting torque
- New ventilation system for improved thermal performance
- Robust design
- Regreasable bearings
- Motor frame painting system 500 hr salt spray resistant
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, Air Handling Motors, General Purpose HVAC Motors Application, 1/0.33 hp, 115 VAC, 12.1/7.1 A, 60 Hz Frequency, 1 ph ph, 1800/1200 rpm Speed, 2 Speed, Open Drip-Proof Enclosure, 56 Frame, 5/8 in Dia x 1-15/16 in L Shaft, CW Rotation, 1 Service Factor, Ball Bearing, 1.51 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class B, Rolled Steel, 10.96 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00182OS1AEC56_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00182OS1AEC56_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_5018EP3ESS56CFL_Catalog.pdf
