00518AT3HCT184T-W22

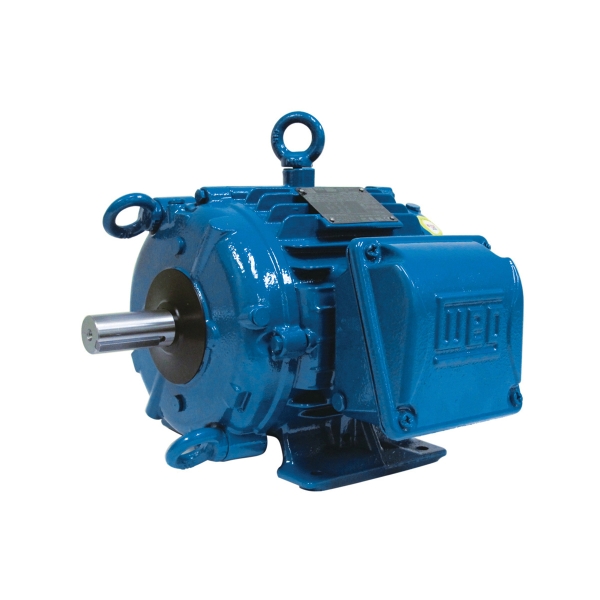

WEG 00518AT3HCT184T-W22 Continuous-Duty AC Motor, Totally Enclosed Air Over Enclosure, 5 hp, 575 VAC, 60 Hz, 3 ph Phase, 182/4T Frame, 1755 rpm Speed, Footed Mount
- CP#:
- Item#: 569307
- Mfr#: 00518AT3HCT184T-W22
- Stainless steel nameplate laser etched with high contrast background
- Double sealed bearings
- Double impregnation and bake
- Internally and externally epoxy painted
- High starting torque
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG's cooling tower motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG's W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.
WEG AC Motor, Continuous-Duty, Air Handling Motors, Chiller/Cooling Tower Motors Application, 5 hp, 575 VAC, 5.16 A, 60 Hz Frequency, 3 ph ph, 1755 rpm Speed, Totally Enclosed Air Over Enclosure, 182/4T Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 14.8 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 15.298 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00518AT3HCT184T_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00518AT3HCT184T_W22_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_5018EP3ESS56CFL_Catalog.pdf
