12518OP3HFP405TC

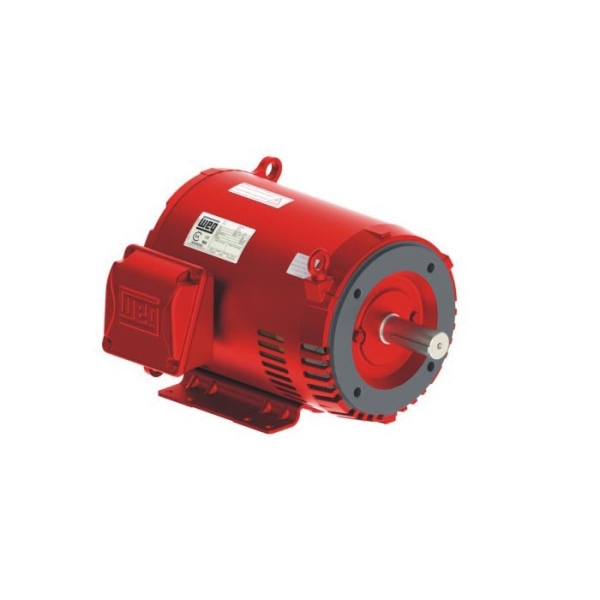

WEG 12518OP3HFP405TC Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 125 hp, 575 VAC, 60 Hz, 3 ph Phase, 404/5TC Frame, 1775 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 573447
- Mfr#: 12518OP3HFP405TC
- Stainless steel nameplate laser etched with high contrast background
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal, with W22 as an option for more demanding environments (50 Hz only). These motors are specifically designed to provide maximum ventilation and cool operation.
WEG AC Motor, Continuous-Duty, Fire Pump Motors Application, 125 hp, 575 VAC, 117 A, 60 Hz Frequency, 3 ph ph, 1775 rpm Speed, Open Drip-Proof Enclosure, 404/5TC Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 365 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 34.133 in L Dimensions
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JP_W22G_Catalog.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_12518OP3HFP405TC_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_12518OP3HFP405TC_Specification_Sheet.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_3336OT1BW56_S_Warranty.pdf
