40018ST3QIE449T-W22

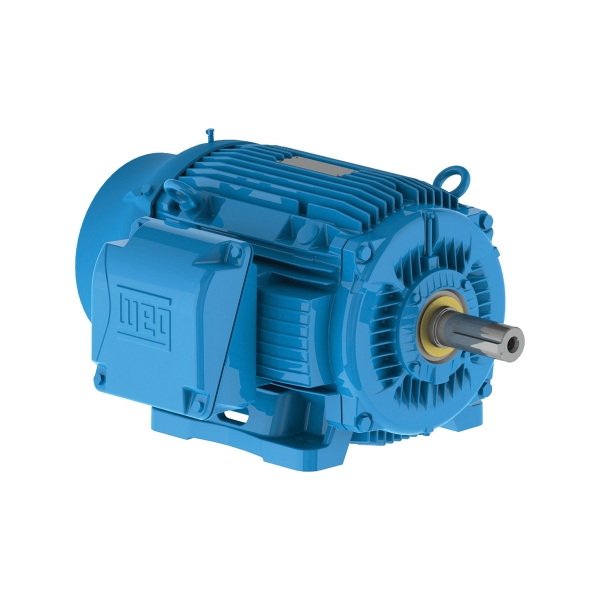

WEG 40018ST3QIE449T-W22 AC Motor, Totally Enclosed Fan Cooled Enclosure, 400 hp, 460 VAC, 60 Hz, 3 ph Phase, L447/9T Frame, 1800 rpm Speed, Footed Mount
- CP#:
- Item#: 575360
- Mfr#: 40018ST3QIE449T-W22
- Stainless steel nameplate laser etched with high contrast background
- All frames with regreasable ball bearings
- IP56 rating
- Rubber lead separator between terminal box and frame
- Epoxy paint system exceeds 250 hr salt spray test
- IEEE 841 test report in conduit box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG's IEEE 841 motors are specially suited for pulp and paper mills, steel mills, petrochemical plants and diverse demanding applications requiring severe duty long life motors. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
WEG AC Motor, General Purpose AC Motors Application, 400 hp, 460 VAC, 455 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, L447/9T Frame, 3-3/8 in Dia x 8-1/2 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 57.181 in L Dimensions
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf
