02009ES3EOW326T-W22

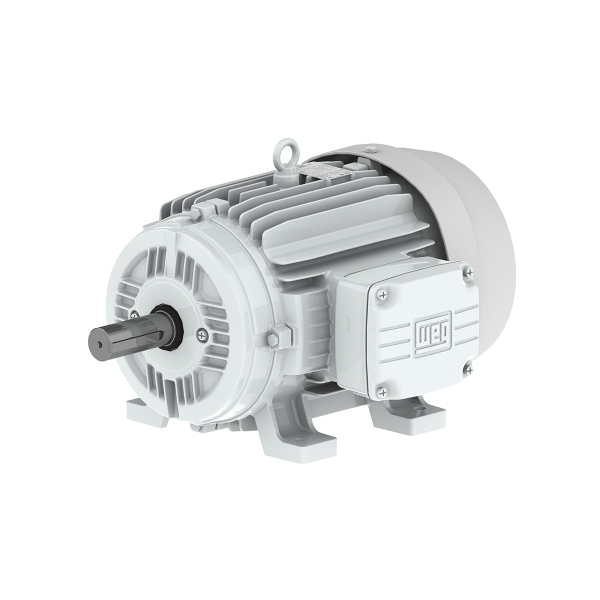

WEG 02009ES3EOW326T-W22 Continuous-Duty Definite Purpose AC Motor, Totally Enclosed Fan Cooled Enclosure, 20 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 324/6T Frame, 840 rpm Speed, Footed Mount
- CP#:
- Item#: 573054
- Mfr#: 02009ES3EOW326T-W22
- These special motors have the high slip and high torque that oil well beam pumping units demand
- Regreasable bearings
- NEMA design D
- Stainless steel nameplate laser etched with high contrast background
- Gasketed conduit box
- High starting and breakdown torque
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG Definite Purpose AC Motor, Continuous-Duty, General Purpose AC Motors, Oil Well Pumping Motors Application, 20 hp, 208/230/460 VAC, 65.9 to 59.6/29.8 A, 60 Hz Frequency, 3 ph ph, 840 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 324/6T Frame, 2-1/8 in Dia x 5-1/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 123 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 31.116 in L Dimensions
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_02009ES3EOW326T_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_02009ES3EOW326T_W22_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_E01812EP3WAX71F3W2_Catalog.pdf
