00156OS3EJP56J-S

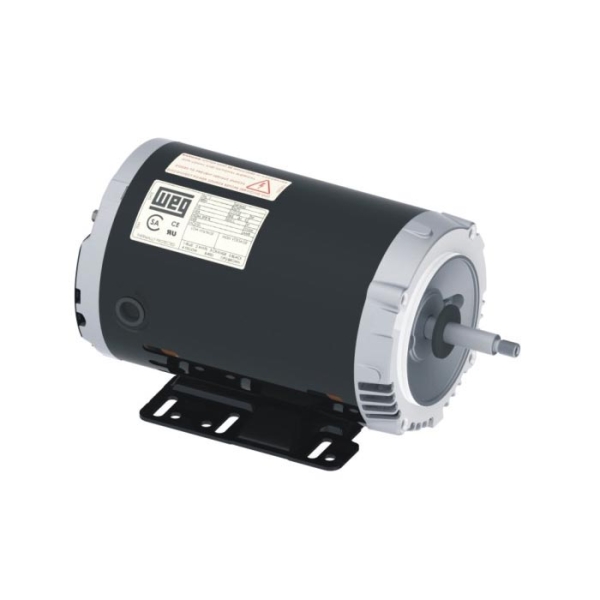

WEG 00156OS3EJP56J-S Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 1.5 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 56J Frame, 3460 rpm Speed, Footed Mount
- CP#:
- Item#: 567297
- Mfr#: 00156OS3EJP56J-S
- NEMA service factor
- Automatic reset thermal overload protection
- Stainless steel shaft end
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in "J" and "C" configurations.
WEG AC Motor, Continuous-Duty, Jet Pump (JM/JP) Motors Application, 1.5 hp, 208/230/460 VAC, 4.66 to 4.22/2.11 A, 60 Hz Frequency, 3 ph ph, 3460 rpm Speed, Open Drip-Proof Enclosure, 56J Frame, CCW Rotation, 1.3 Service Factor, Ball Bearing, 2.25 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 11.614 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00156OS3EJP56J_S_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00156OS3EJP56J_S_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JPW22G_Catalog.pdf
