00158OT3E145JP-S

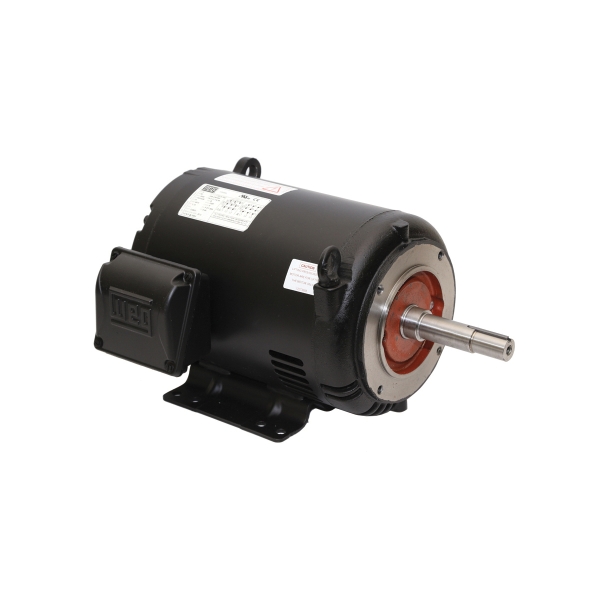

WEG 00158OT3E145JP-S Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 1.5 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 143/5JP Frame, 1760 rpm Speed, Footed Mount
- CP#:
- Item#: 568260
- Mfr#: 00158OT3E145JP-S
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 1.5 hp, 208/230/460 VAC, 4.58 to 4.14/2.07 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, Open Drip-Proof Enclosure, 143/5JP Frame, 7/8 in Dia x 7-5/32 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 4.42 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 1000:1 Variable Torque Speed, 17.953 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00158OT3E145JP_S_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00158OT3E145JP_S_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JPW22G_Catalog.pdf
