02518OP3EFP284TS

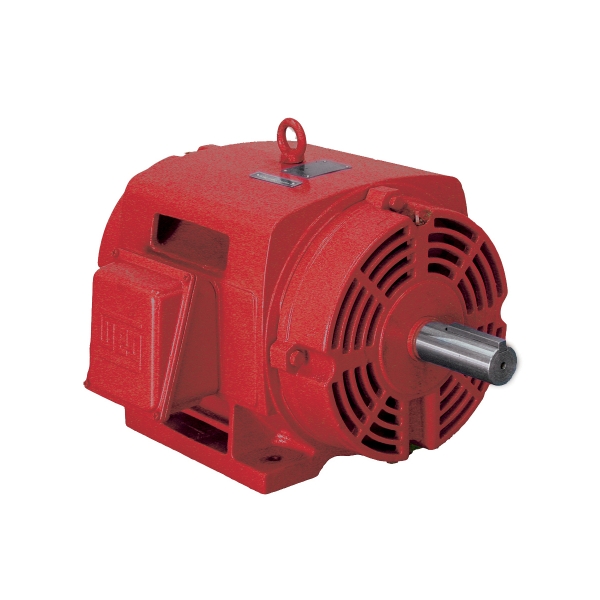

WEG 02518OP3EFP284TS Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 25 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 284TS Frame, 1765 rpm Speed, Footed Mount
- CP#:
- Item#: 571074
- Mfr#: 02518OP3EFP284TS
- Stainless steel nameplate laser etched with high contrast background
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal, with W22 as an option for more demanding environments (50 Hz only). These motors are specifically designed to provide maximum ventilation and cool operation.
WEG AC Motor, Continuous-Duty, Fire Pump Motors Application, 25 hp, 208/230/460 VAC, 66.6 to 60.2/30.1 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, Open Drip-Proof Enclosure, 284TS Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 73.4 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 22 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_02518OP3EFP284TS_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_02518OP3EFP284TS_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JP_W22G_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_3336OT1BW56_S_Warranty.pdf
