00112XT3H145T

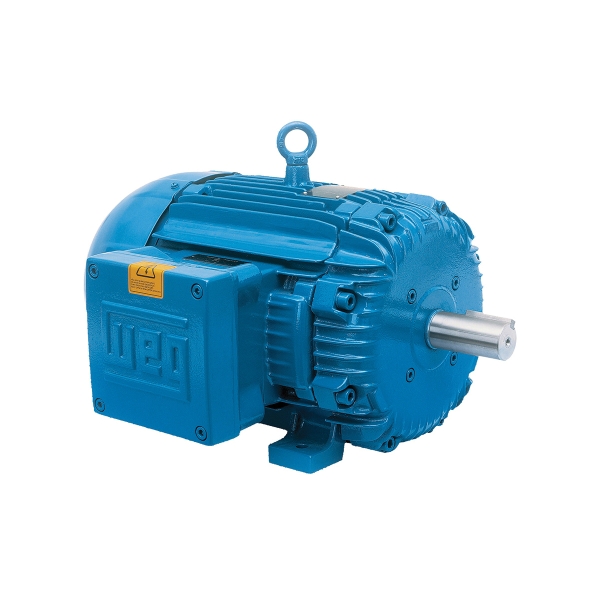

WEG 00112XT3H145T Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 575 VAC, 60 Hz, 3 ph Phase, 145T Frame, 1145 rpm Speed, Footed Mount
- CP#:
- Item#: 569495
- Mfr#: 00112XT3H145T
- Stainless steel nameplate laser etched with high contrast background
- NPT threaded terminal box
- IP55 rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
W21Xd is an explosion proof motor especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/zone 1. All ratings meet NEMA Premium® efficiency. Motors are certified for VFD service.
WEG AC Motor, Continuous-Duty, Explosion Proof AC Motors Special Features, 1 hp, 575 VAC, 1.23 A, 60 Hz Frequency, 3 ph ph, 1145 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 145T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 4.52 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 13.752 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00112XT3H145T_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00112XT3H145T_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00518XT3E184TC_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf
