00236OS3HJPR56C-S

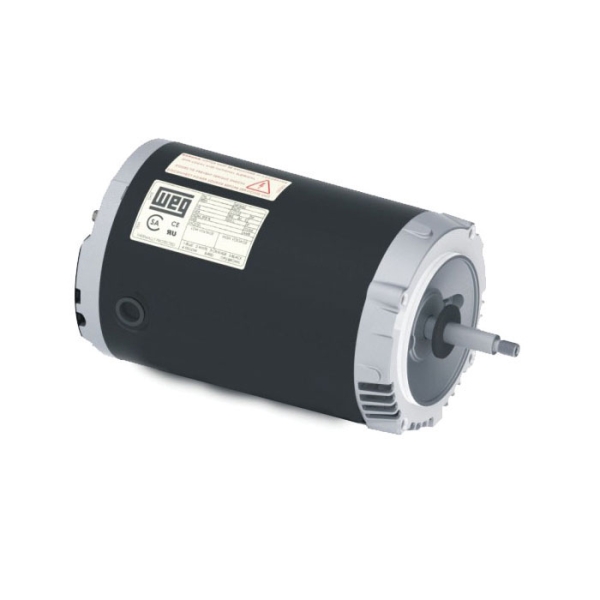

WEG 00236OS3HJPR56C-S Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 2 hp, 575 VAC, 60 Hz, 3 ph Phase, 56C Frame, 3470 rpm Speed, Footless Mount
- CP#:
- Item#: 567369
- Mfr#: 00236OS3HJPR56C-S
- NEMA service factor
- Automatic reset thermal overload protection
- Stainless steel shaft end
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in "J" and "C" configurations.
WEG AC Motor, Continuous-Duty, Jet Pump (JM/JP) Motors Application, 2 hp, 575 VAC, 2.3 A, 60 Hz Frequency, 3 ph ph, 3470 rpm Speed, Open Drip-Proof Enclosure, 56C Frame, CCW Rotation, 1.2 Service Factor, Ball Bearing, 2.99 ft-lb Torque, Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 11.496 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00236OS3HJPR56C_S_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00236OS3HJPR56C_S_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JPW22G_Catalog.pdf
