02518ET3EBM284T-W22

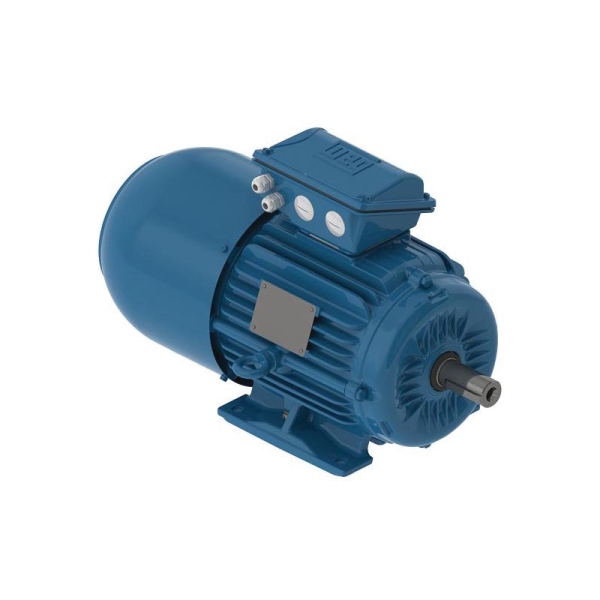

WEG 02518ET3EBM284T-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 25 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 284/6T Frame, 1765 rpm Speed, Footed Mount
- CP#:
- Item#: 663886
- Mfr#: 02518ET3EBM284T-W22
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Armature type brake
- Manual release
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG W22 brake motors consist of an induction motor coupled to a disc brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance.
WEG AC Motor, Continuous-Duty, Brake Motors, General Purpose AC Motors, Hoist Motors Application, 25 hp, 208/230/460 VAC, 65.2 to 59/29.5 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 284/6T Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 73.4 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 32.976 in L Dimensions
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_02518ET3EBM284T_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_02518ET3EBM284T_W22_Specification_Sheet.pdf
