00336ES1B145JM

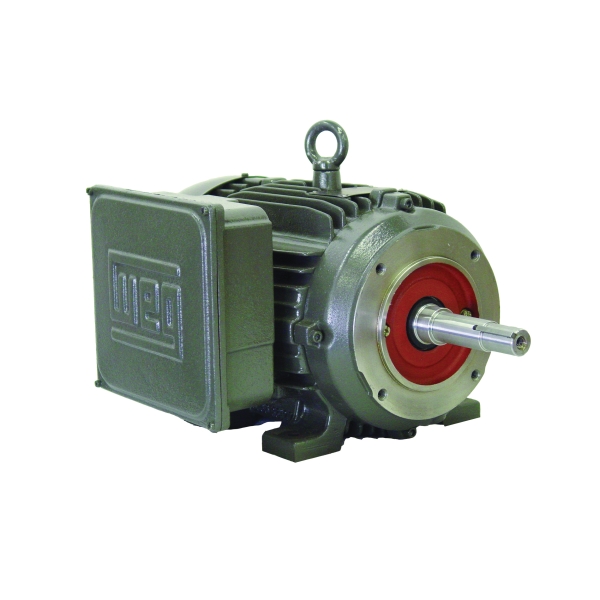

WEG 00336ES1B145JM Closed Couple Pump Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 115/208/230 VAC, 60 Hz, 1 ph Phase, 145JM Frame, 3480 rpm Speed, Footed Mount
- CP#:
- Item#: 569683
- Mfr#: 00336ES1B145JM
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Gasketed conduit box
- Motors were especially developed for application on pumps with direct coupling
- They ensure maximum performance and robustness in a great variety of applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
WEG AC Motor, Closed Couple Pump Continuous Duty, Jet Pump (JM/JP) Motors Application, 3 hp, 115/208/230 VAC, 26/14 to 13 A, 60 Hz Frequency, 1 ph ph, 3480 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 145JM Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 4.47 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 1000:1 Variable Torque Speed, 16.458 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00336ES1B145JM_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00336ES1B145JM_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JPW22G_Catalog.pdf
