00736ET3E213JM-SG

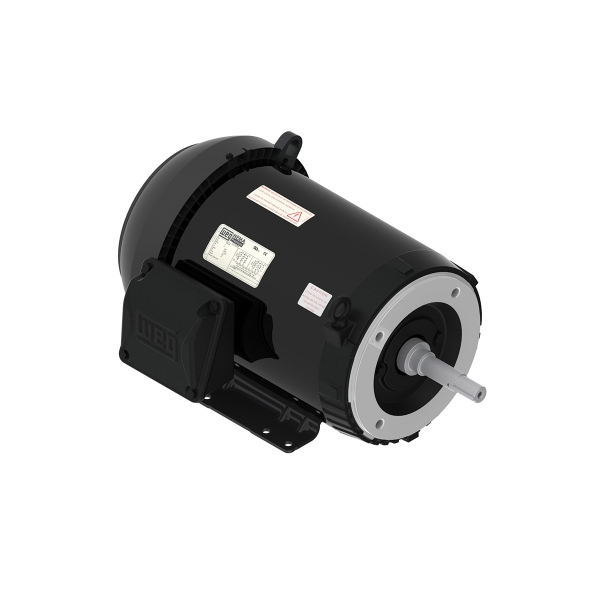

WEG 00736ET3E213JM-SG Closed Couple Pump Continuous Duty AC Motor With Internal AEGIS® Ring, Totally Enclosed Fan Cooled Enclosure, 7.5 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 213/5JM Frame, 3530 rpm Speed, Footed Mount
- CP#:
- Item#: 570827
- Mfr#: 00736ET3E213JM-SG
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Gasketed conduit box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings.
WEG AC Motor, Closed Couple Pump Continuous Duty, Jet Pump (JM/JP) Motors Application, 7.5 hp, 208/230/460 VAC, 19.2 to 17.3/8.67 A, 60 Hz Frequency, 3 ph ph, 3530 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213/5JM Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 11.0 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 1000:1 Variable Torque Speed, 21.22 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00736ET3E213JM_SG_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00736ET3E213JM_SG_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JPW22G_Catalog.pdf
