00318OT3P182T-S

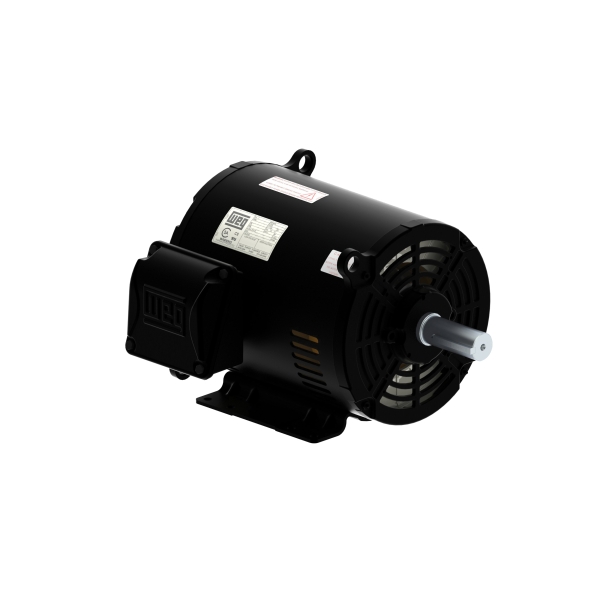

WEG 00318OT3P182T-S Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 3 hp, 200 VAC, 60 Hz, 3 ph Phase, 182/4T Frame, 1765 rpm Speed, Footed Mount
- CP#:
- Item#: 568146
- Mfr#: 00318OT3P182T-S
- Aluminum endshields
- Cast iron flanges for improved strength
- Internal bolts, giving a clean surface to the motor
- Double shielded ball bearings
- Robust design
- IP55 rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 rolled steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and NEMA Premium® efficiency, these versatile motors provide torque and durability for several applications.
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 3 hp, 200 VAC, 8.9 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, Open Drip-Proof Enclosure, 182/4T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 8.81 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 15.157 in L Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00318OT3P182T_S_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00318OT3P182T_S_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf
