01018ET3HR215TC-S

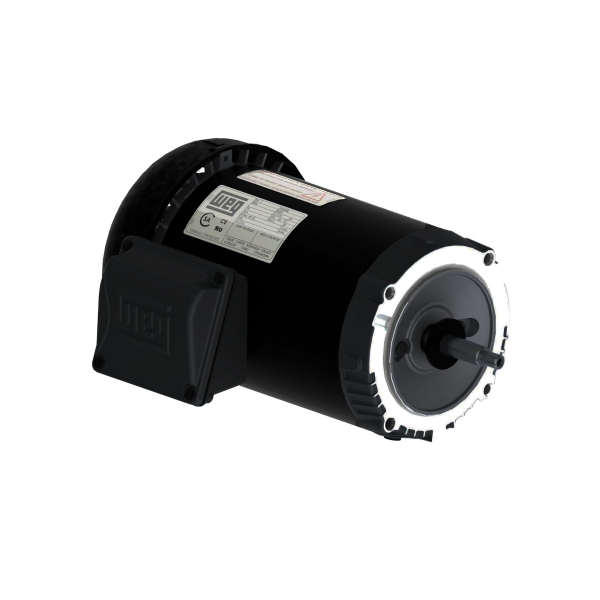

WEG 01018ET3HR215TC-S Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 575 VAC, 60 Hz, 3 ph Phase, 213-5TC Frame, 1760 rpm Speed, C-Face Footless Mount
- CP#:
- Item#: 569914
- Mfr#: 01018ET3HR215TC-S
- Aluminum endshields
- Cast iron flanges for improved strength
- Internal bolts, giving a clean surface to the motor
- Double shielded ball bearings
- Robust design
- IP55 rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 10 hp, 575 VAC, 9.8 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213-5TC Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 29.4 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 19.291 in L Dimensions
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3HR215TC_S_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3HR215TC_S_Specification_Sheet.pdf
