0054SDSC42A-P

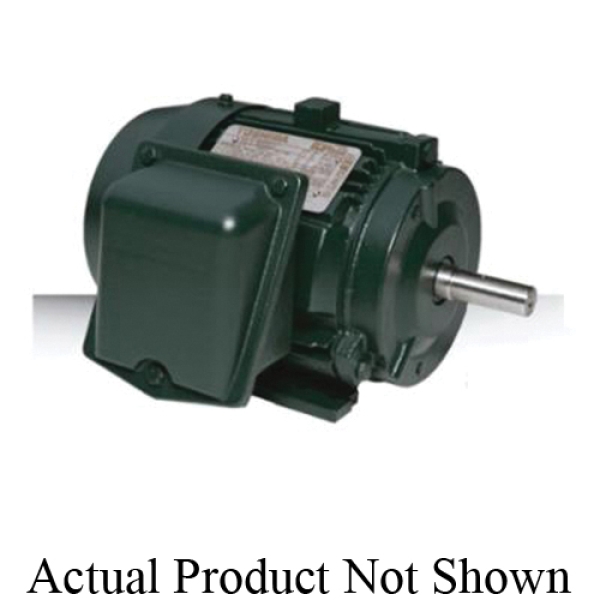

Toshiba EQP Global® 0054SDSC42A-P SD Series Continuous-Duty Type IKH AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 575 VAC, 60 Hz, 3 ph Phase, 184TC Frame, 1800 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 670503
- Mfr#: 0054SDSC42A-P
- IP55 protection
- Cast iron frame, brackets and conduit box
- Oversized 300 series bearing on all frames
- No-load commercial testing on all motors
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Toshiba's general purpose, totally enclosed fan cooled, NEMA Premium® efficiency, EQP Global® SD motor series is Toshiba's next-generation motor product line. This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba.
Toshiba EQP Global® AC Motor, Continuous-Duty Type IKH, Series: SD Series, General Purpose AC Motors, Compressor Motors, Fan & Blower Motors Application, 5 hp, 575 VAC, 5.2 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184TC Frame, 1-1/8 in Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 15 ft-lb Torque, C-Face Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 60:1 Variable Torque Speed, 15.5 in L x 11.2 in H Dimensions
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Toshiba_0054SDSC42A_P_Full_Engineering_Drawing.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Toshiba_348XDSB41AP_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Toshiba_Y152SDJC41M_P_Manual.pdf
