01036ES1C215JP

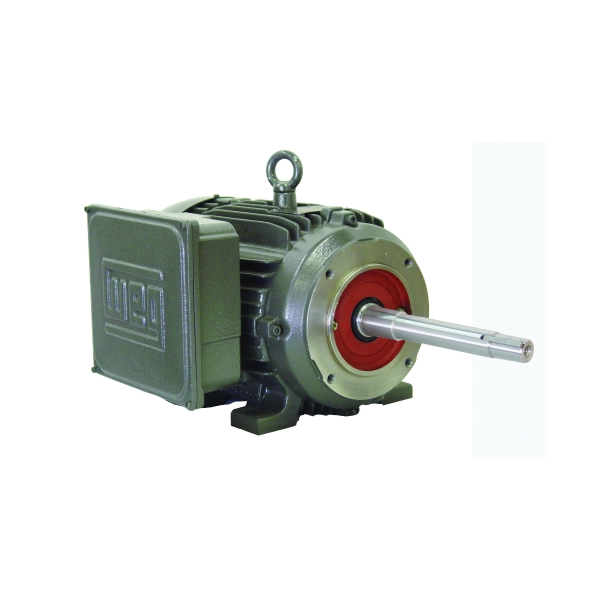

WEG 01036ES1C215JP Closed Couple Pump Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 208/230 VAC, 60 Hz, 1 ph Phase, 215JP Frame, 3510 rpm Speed, Footed Mount
- CP#:
- Item#: 571539
- Mfr#: 01036ES1C215JP
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Gasketed conduit box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 10 hp, 208/230 VAC, 43.2 to 38.8 A, 60 Hz Frequency, 1 ph ph, 3510 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 215JP Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 14.8 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 24.272 in L Dimensions
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01036ES1C215JP_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01036ES1C215JP_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JPW22G_Catalog.pdf
