- ABB OC25G01PNBN00NB1
OC25G01PNBN00NB1

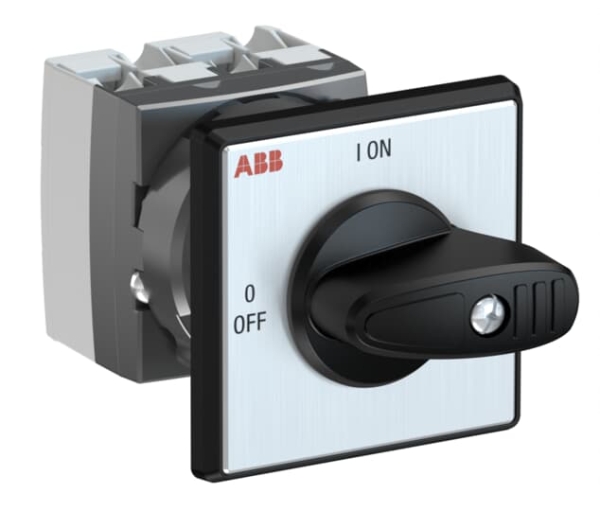

ABB OC25G01PNBN00NB1 Standard Rotary Cam Switch, 600/690 VAC, 25 A, 3/4 hp, 2 hp, 3 hp, 5 hp, 7-1/2 hp, 1 Pole, Basic Nose Handle Actuator
- CP#:
- Item#: OC25G01PNBN00NB1
- Mfr#: OC25G01PNBN00NB1
- UPC: 888614365179
- Quick and easy customization, don't waste time filling out forms and waiting for responses, autonomously design your own cam switch with confidence
- Our intuitive online tool, CAMWEB2, eliminates the opportunity for errors, immediately receive a complete data sheet and part number made just for you
- High quality, flame resistant materials
- Laser printed text for life long visibility, even in harsh environments
- Configurable switch body offers horizontal or vertical access to terminals
- Safety and reliability, finger proof tunnel terminals with IP20 protection eliminate the risk of touching live parts without adding any protective covers, this ensures safe operation, protecting people and equipment
- Save installation time, space and costs, quick and easy snap-on mounting reduces installation labor by 5 times
- 3/4 hp at 120 VAC, 2 hp at 240 VAC, 3 hp at 480/600 VAC 1-phase and 2 hp at 120 VAC, 3 hp at 240 VAC, 5 hp at 480 VAC, 7-1/2 hp at 600 VAC 3-phase, 50/60 Hz
- With 0-position 9 o'clock 90 deg step angle
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The OC cam switch product line is the latest addition to ABB's cam switch family. Our new patent pending contact design provides increased performance in compact 10 A and 25 A frame sizes.
ABB Rotary Cam Switch, Standard, Series: OC25, 600/690 VAC, 25 A, 3/4 hp, 2 hp, 3 hp, 5 hp, 7-1/2 hp, 1 Pole, Basic Nose Handle Actuator, 0 OFF-1 ON Switching Positions, Door/Snap-On Mounting, IP20/IP66, Screw/Standard Box Tunnel Terminal, -40 to 185 deg F, Black/Silver, 83 mm L x 32 mm W x 32 mm H Dimensions
SPECIFICATIONS
| Color | : | Black/Silver |
| Dimensions | : | 83 mm L x 32 mm W x 32 mm H |
| Mounting | : | Door/Snap-On |
| NEMA Rating | : | IP20/IP66 |
| Series | : | OC25 |
| Switching Positions | : | 0 OFF-1 ON |
| Temperature Rating | : | -40 to 185 deg F |
| Terminal Type | : | Screw/Standard Box Tunnel |
| Type | : | Standard |
| Voltage Rating | : | 600/690 VAC |
| Amperage Rating | : | 25 A |
| Horsepower | : | 3/4 hp, 2 hp, 3 hp, 5 hp, 7-1/2 hp |
| Number of Poles | : | 1 |
| Actuator | : | Basic Nose Handle |
