NV2F

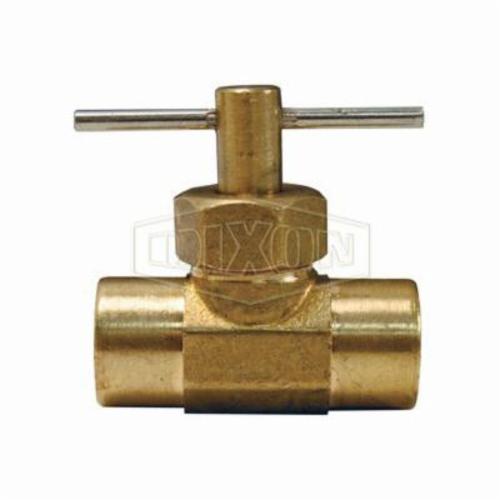

Dixon® NV2F Needle Valve, 1/8 in, FNPT, Brass Body

  • Item#: NV2F
  • Mfr#: NV2F
    • Designed for air and water applications
    • Metal-to-metal seats allow positive sealing and flow adjustment
    • 150 psi pressure at 200 deg F
    • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
    • Do not use in connection with drinking water
    • Wash hands after handling
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Needle Valve, 1/8 in Nominal, FNPT, 150 psi Pressure Rating, Brass Body, 1-1/4 in L x 9/16 in W x 1-7/16 in H

⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SPECIFICATIONS

Dimensions      :      1-1/4 in L x 9/16 in W x 1-7/16 in H
Pressure Rating      :      150 psi
Nominal Size      :      1/8 in
End Style      :      FNPT
Body Material      :      Brass
Domestic/Import      :      Domestic

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_MBV12_Catalog.pdf
