- Timken® 22324EJW33C3
22324EJW33C3

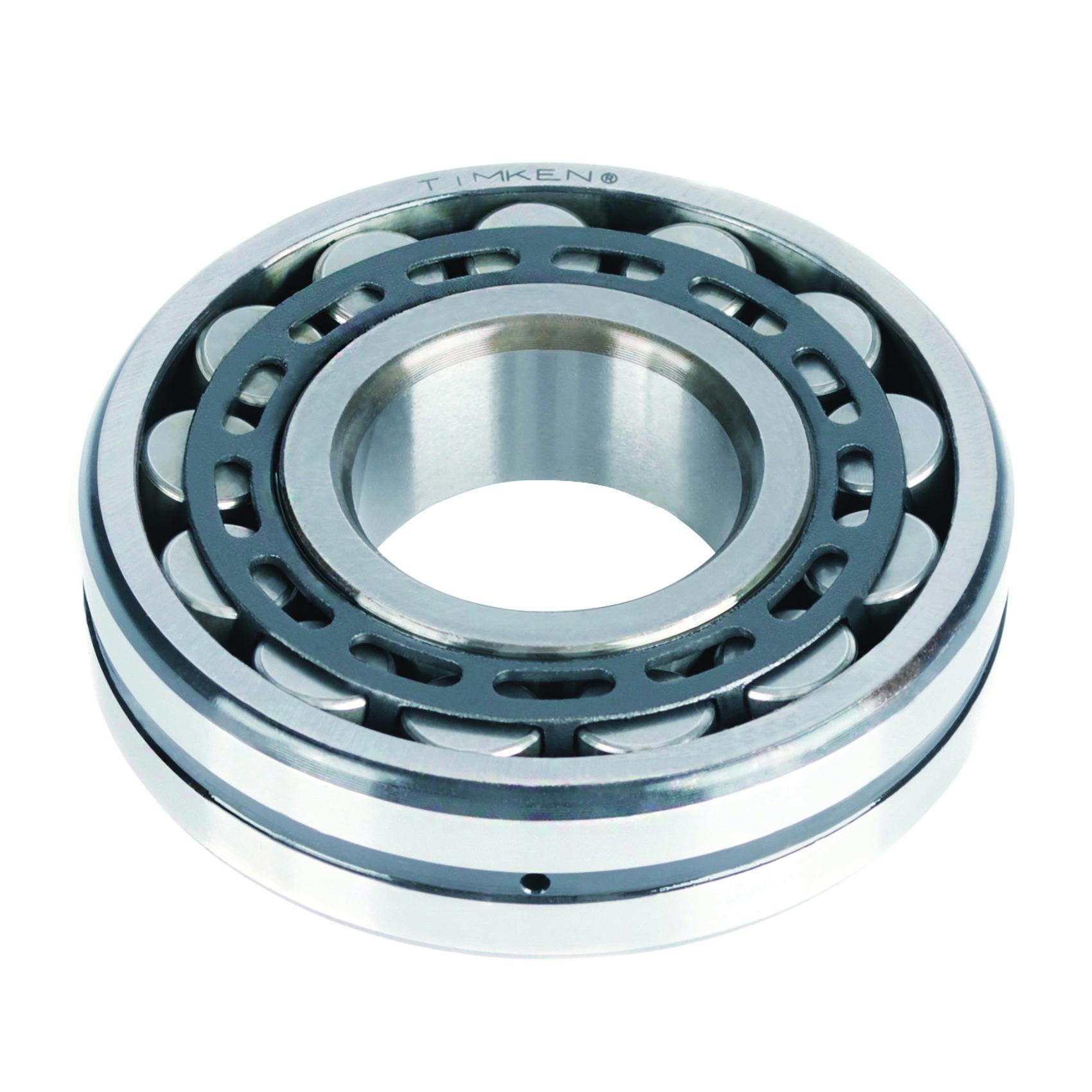

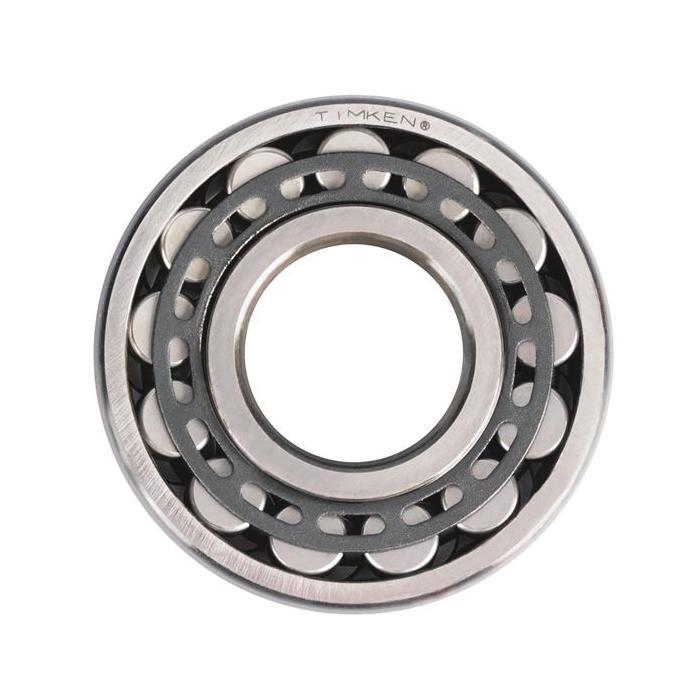

Timken® 22324EJW33C3 223 Straight Bore Type EJ Spherical Roller Bearing, 120 mm Dia Bore, 260 mm Dia Outside, 2 Rows, 86 mm W, 244000 lb Dynamic/272000 lb Static Load
- CP#:
- Item#: 22324CJW33C3
- Mfr#: 22324EJW33C3
- UPC: 087796027268
- Enhanced surface finishes
- Industry leading load ratings
- Nitride hardened steel cage with face slots
- W33 standard lubrication holes and groove in outer ring
- C3 radial internal clearance
- Run at consistently lower temperatures than same size competitive bearings for greater reliability
- Multiple cage designs including a wide range of both steel and brass and help reduce stress at high shock loads or speeds and provide strong contaminant purge
- Optimized internal geometries deliver the highest load and speed ratings in the industry
- EJ bearings supersede CJ and VCSJ bearings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5 deg of shaft misalignment can be accommodated.
Timken®, 22324EJW33C3, Spherical Roller Bearing, Straight Bore Type EJ, Series: 223, 120 mm Bore, 260 mm OD, 2 Rows, 86 mm Width, Open Closure, 244000 lb Dynamic/272000 lb Static Load, Steel Bearing, 1900 rpm Grease/2200 rpm Oil Maximum, -65 to 392 deg F, Polished Chrome

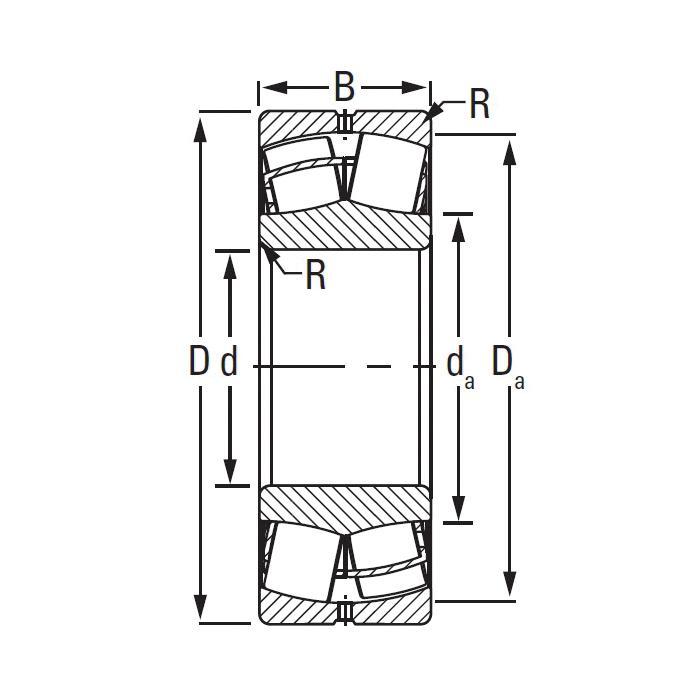

SPECIFICATIONS
| Series | : | 223 |
| Bearing Material | : | Steel |
| Finish | : | Polished Chrome |
| Load Capacity | : | 244000 lb Dynamic/272000 lb Static |
| Maximum Speed | : | 1900 rpm Grease/2200 rpm Oil |
| Outside Diameter | : | 260 mm |
| Number of Rows | : | 2 |
| Inside Diameter | : | 120 mm |
| Mounted | : | No |
| Measurement System | : | Metric |
| Width | : | 86 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/10000/Timken_24068KEMBW33W45A_Catalog.pdf
