00536ES1C184JM

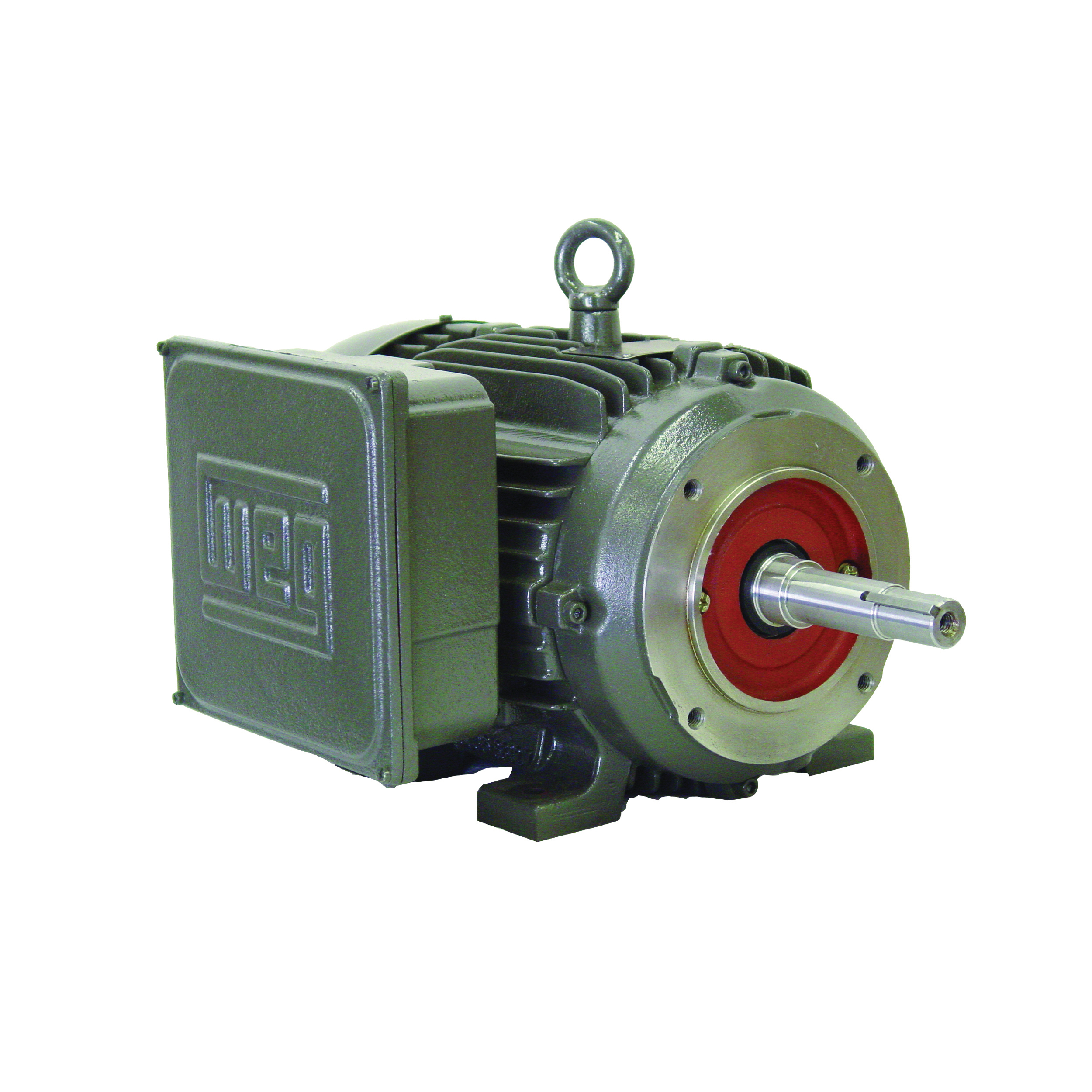

WEG 00536ES1C184JM Closed Couple Pump Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 208/230 VAC, 60 Hz, 1 ph Phase, 184JM Frame, 3500 rpm Speed, Footed Mount
- CP#:
- Item#: 00536ES1C184JM
- Mfr#: 00536ES1C184JM
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Gasketed conduit box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 5 hp, 208/230 VAC, 22.5 to 21 A, 60 Hz Frequency, 1 ph ph, 3500 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184JM Frame, 0.8745 in Dia x 4.25 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 7.40 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 17.368 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 5 hp |
| Frequency | : | 60 Hz |
| Torque Rating | : | 7.40 ft-lb |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 22.5 to 21 A |
| Type | : | Closed Couple Pump Continuous-Duty |
| Shaft Size | : | 0.8745 in Dia x 4.25 in L |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 17.368 in L |
| Rotation | : | CW/CCW |
| Application Type | : | Jet Pump (JM/JP) Motors |
| AC Voltage | : | 208/230 VAC |
| Phase | : | 1 |
| Frame | : | 184JM |
| Speed | : | 3500 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Datasheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00536ES1C184JM_Datasheet.pdf -
Technical Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00536ES1C184JM_Technical_Drawing.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JP_W22G_Catalog.pdf -
Warranty https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_3336OT1BW56_S_Warranty_Sheet.pdf
