01536ET3EPM254/6Y

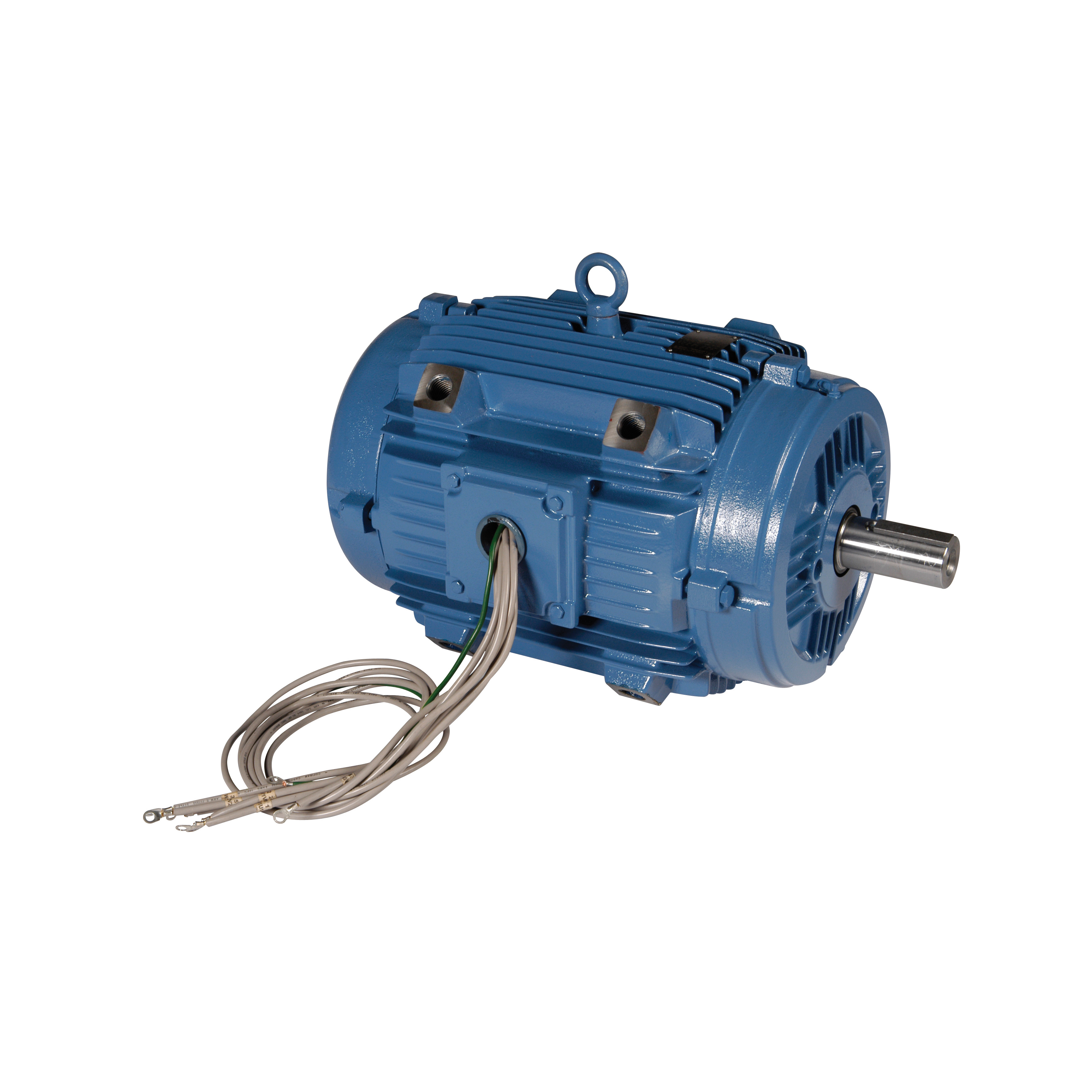

WEG 01536ET3EPM254/6Y Continuous-Duty AC Motor, Totally Enclosed Air Over Enclosure, 15 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 256Y Frame, 3600 rpm Speed, Pad Mount
- CP#:
- Item#: 01536ET3EPM254/6Y
- Mfr#: 01536ET3EPM254/6Y
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, Air Handling Motors, General Purpose HVAC Motors Application, 15 hp, 230/460 VAC, 17.2 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Totally Enclosed Air Over Enclosure, 256Y Frame, 1.25 Service Factor, Ball Bearing, Pad Mounting, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 22.205 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 15 HP |
| Frequency | : | 60 Hz |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 17.2 A |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Service Factor | : | 1.25 |
| Dimensions | : | 22.205 in L |
| Application Type | : | Air Handling Motors, General Purpose HVAC Motors |
| AC Voltage | : | 230/460 VAC |
| Phase | : | 3 |
| Frame | : | 256Y |
| Speed | : | 3600 rpm |
| Mounting Type | : | Pad |
| Enclosure Type | : | Totally Enclosed Air Over |
