01089EP3PCT215V-W22

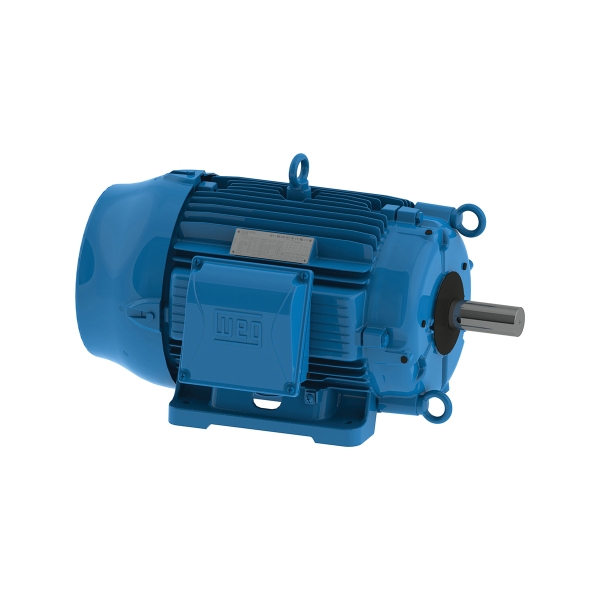

WEG 01089EP3PCT215V-W22 Continuous-Duty High Efficiency AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 200 VAC, 60 Hz, 3 ph Phase, 213/5T Frame, 1765 rpm Speed, Footed Mount
- CP#:
- Item#: 01089EP3PCT215V-W22
- Mfr#: 01089EP3PCT215V-W22
- Stainless steel nameplate laser etched with high contrast background
- Double sealed bearings
- Double impregnation and bake
- Internally and externally epoxy painted
- High starting torque
- IP55 rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG's cooling tower motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG's W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.
WEG AC Motor, Continuous-Duty High Efficiency, Air Handling Motors, Chiller/Cooling Tower Motors Application, 10 hp, 200 VAC, 29.9 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, 2 Speed, Totally Enclosed Fan Cooled Enclosure, 213/5T Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 29.4 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 19.517 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 10 hp |
| Torque Rating | : | 29.4 ft-lb |
| Number of Speeds | : | 2 |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 29.9 A |
| Type | : | Continuous-Duty High Efficiency |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.25 |
| Dimensions | : | 19.517 in L |
| Rotation | : | CW/CCW |
| Application Type | : | Air Handling Motors, Chiller/Cooling Tower Motors |
| Phase | : | 3 |
| Frame | : | 213/5T |
| Speed | : | 1765 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01089EP3PCT215V_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01089EP3PCT215V_W22_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_5018EP3ESS56CFL_Catalog.pdf
