02036OT3H254TC-S

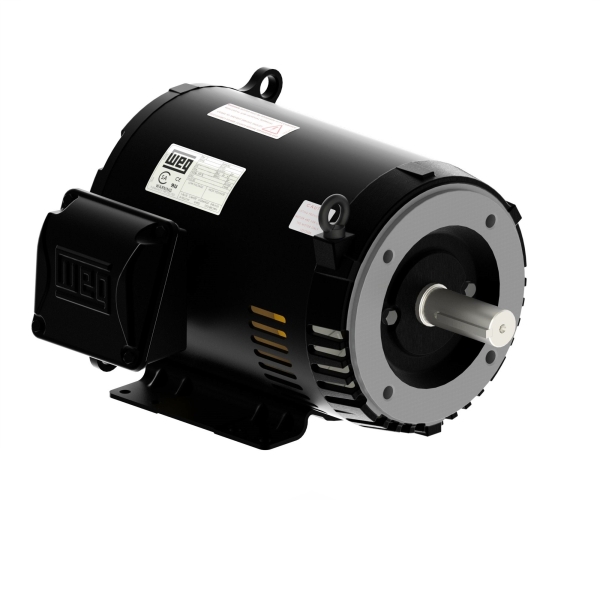

WEG 02036OT3H254TC-S Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 20 hp, 575 VAC, 60 Hz, 3 ph Phase, 254/6TC Frame, 3525 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 02036OT3H254TC-S
- Mfr#: 02036OT3H254TC-S
- Aluminum endshields
- Cast iron flanges for improved strength
- Internal bolts, giving a clean surface to the motor
- Double shielded ball bearings
- Robust design
- IP55 rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 rolled steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and NEMA Premium® efficiency, these versatile motors provide torque and durability for several applications.
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 20 hp, 575 VAC, 19 A, 60 Hz Frequency, 3 ph ph, 3525 rpm Speed, Open Drip-Proof Enclosure, 254/6TC Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 29.4 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 20.472 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 20 hp |
| Torque Rating | : | 29.4 ft-lb |
| Material | : | Rolled Steel |
| Amperage Rating | : | 19 A |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 20.472 in L |
| Rotation | : | CW/CCW |
| Application Type | : | General Purpose AC Motors |
| Phase | : | 3 |
| Frame | : | 254/6TC |
| Speed | : | 3525 rpm |
| Mounting Type | : | C-Face Footed |
| Enclosure Type | : | Open Drip-Proof |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_02036OT3H254TC_S_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_02036OT3H254TC_S_Specification_Sheet.pdf
