00136ET3E143TC-W22

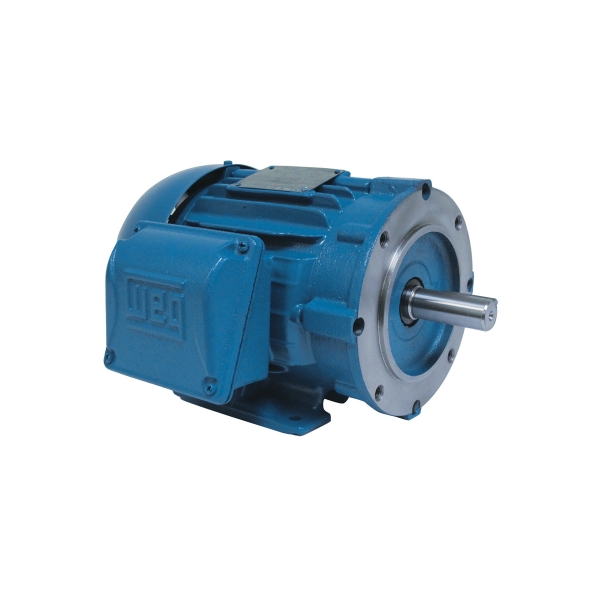

WEG 00136ET3E143TC-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 143-5TC Frame, 3480 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 00136ET3E143TC-W22
- Mfr#: 00136ET3E143TC-W22
- UPC: 7891327522442
- Regreasable bearings
- Gasketed conduit box
- All cast iron construction, including terminal box and fan cover
- IP55 rating
- Corrosion proof drains
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 1 hp, 208/230/460 VAC, 3.16 to 2.88/1.44 A, 60 Hz Frequency, 3 ph ph, 3480 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143-5TC Frame, 7/8 in Dia x 2-1/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 1.49 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 13.358 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 1 hp |
| Torque Rating | : | 1.49 ft-lb |
| Number of Speeds | : | 1 |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 3.16 to 2.88/1.44 A |
| Constant Torque Speed Range | : | 20:1 |
| Type | : | Continuous-Duty |
| Shaft Size | : | 7/8 in Dia x 2-1/4 in L |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.25 |
| Dimensions | : | 13.358 in L |
| Rotation | : | CW/CCW |
| Application Type | : | General Purpose AC Motors |
| Phase | : | 3 |
| Frame | : | 143-5TC |
| Speed | : | 3480 rpm |
| Mounting Type | : | C-Face Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00136ET3E143TC_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00136ET3E143TC_W22_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf
