00312ET3E213JP-S

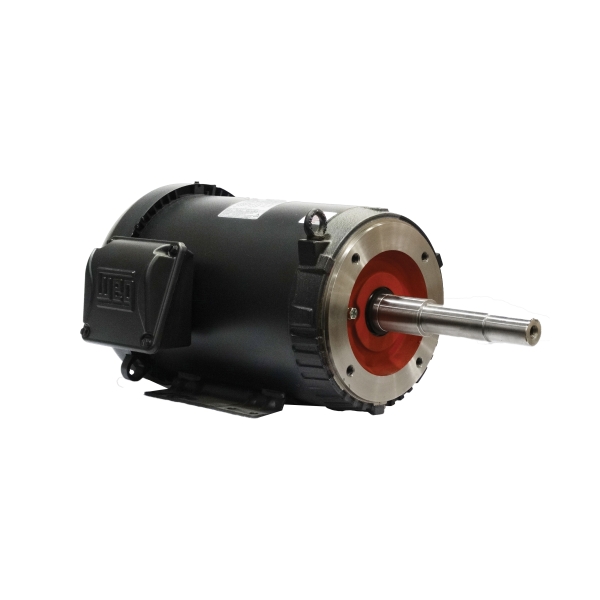

WEG 00312ET3E213JP-S Closed Couple Pump Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 213/5JP Frame, 1200 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 00312ET3E213JP-S
- Mfr#: 00312ET3E213JP-S
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Gasketed conduit box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
WEG AC Motor, Closed Couple Pump Continuous Duty, Jet Pump (JM/JP) Motors Application, 3 hp, 230/460 VAC, 4.2 A, 60 Hz Frequency, 3 ph ph, 1200 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213/5JP Frame, 1.15 Service Factor, 13.2 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 1000:1 Variable Torque Speed, 24.291 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 3 hp |
| Torque Rating | : | 13.2 ft-lb |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Rolled Steel |
| Amperage Rating | : | 4.2 A |
| Type | : | Closed Couple Pump Continuous Duty |
| Insulation Class | : | Class F |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 24.291 in L |
| Application Type | : | Jet Pump (JM/JP) Motors |
| Phase | : | 3 |
| Frame | : | 213/5JP |
| Speed | : | 1200 rpm |
| Mounting Type | : | C-Face Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JPW22G_Catalog.pdf
