E05536EP3YAX250SMF3W

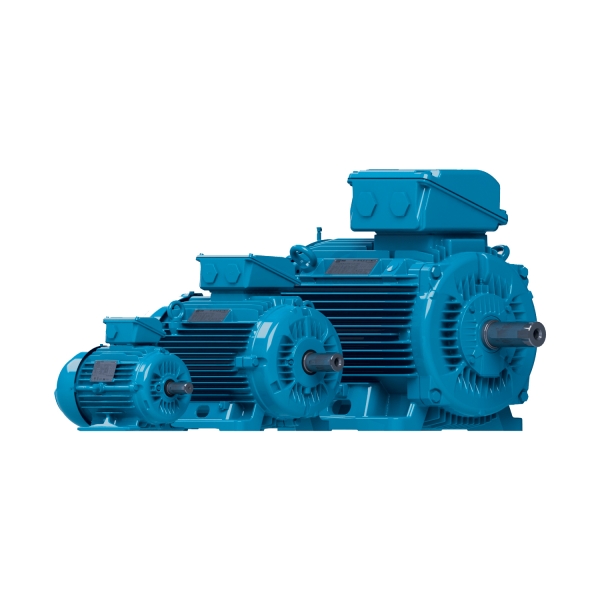

WEG E05536EP3YAX250SMF3W High Efficiency Non-Sparking AC Motor, Totally Enclosed Fan Cooled Enclosure, 75 hp, 380/415/660/690/440/460 VAC, 50 Hz, 3 ph Phase, 250S/M Frame, 3000/3600 rpm Speed, Footed Mount
- CP#:
- Item#: E05536EP3YAX250SMF3W
- Mfr#: E05536EP3YAX250SMF3W
- Stainless steel nameplate laser etched with high contrast background
- Gasketed conduit box
- Suitable for WYE/delta start
- Thermistor 2 per phase
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
W21Xd is an explosion proof motor especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength.
WEG AC Motor, High Efficiency Non-Sparking, Explosion Proof AC Motors Special Features, 75 hp, 380/415/660/690/440/460 VAC, 92.5 A, 50 Hz Frequency, 3 ph ph, 3000/3600 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 250S/M Frame, 1 Service Factor, Ball Bearing, Footed Mounting, Insulation Class: Class F, Cast Iron, 37.992 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 75 hp |
| Material | : | Cast Iron |
| Amperage Rating | : | 92.5 A |
| Type | : | High Efficiency Non-Sparking |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Service Factor | : | 1 |
| Dimensions | : | 37.992 in L |
| Special Features | : | Explosion Proof AC Motors |
| Phase | : | 3 |
| Frame | : | 250S/M |
| Speed | : | 3000/3600 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_E01812EP3WAX71F3W2_Catalog.pdf
