20036ET3G447TS-W22

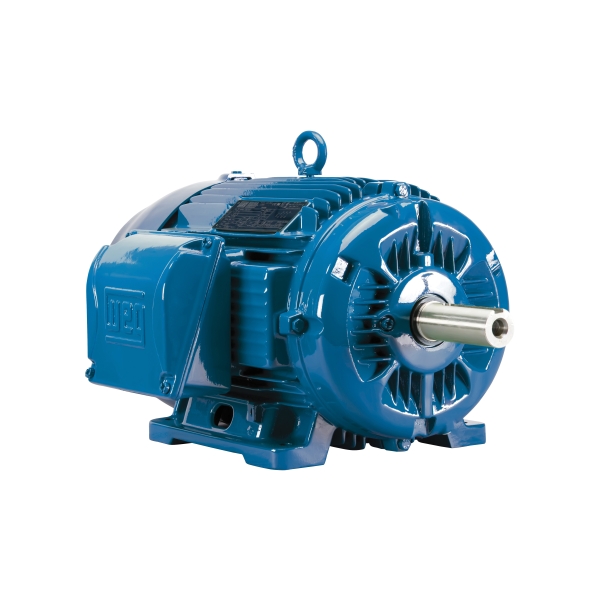

WEG 20036ET3G447TS-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 200 hp, 460 VAC, 60 Hz, 3 ph Phase, 445/7TS Frame, 3570 rpm Speed, Footed Mount
- CP#:
- Item#: 20036ET3G447TS-W22
- Mfr#: 20036ET3G447TS-W22
- UPC: 7891327130722
- Regreasable bearings
- Gasketed conduit box
- All cast iron construction, including terminal box and fan cover
- IP55 rating
- Corrosion proof drains
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
With cast iron frame, flexible mounting, solid feet and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 200 hp, 460 VAC, 219 A, 60 Hz Frequency, 3 ph ph, 3570 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 445/7TS Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 290 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 44.951 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 200 hp |
| Torque Rating | : | 290 ft-lb |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 219 A |
| Constant Torque Speed Range | : | 20:1 |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 44.951 in L |
| Rotation | : | CW/CCW |
| Application Type | : | General Purpose AC Motors |
| Phase | : | 3 |
| Frame | : | 445/7TS |
| Speed | : | 3570 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_20036ET3G447TS_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_20036ET3G447TS_W22_Specification_Sheet.pdf
