01036OT3E213T-SG

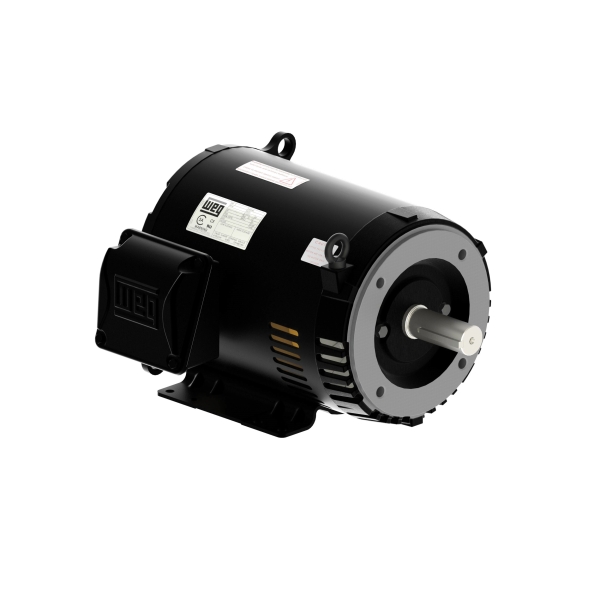

WEG 01036OT3E213T-SG Continuous-Duty AC Motor With Internal AEGIS® Ring, Open Drip-Proof Enclosure, 10 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 213/5T Frame, 3600 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 01036OT3E213T-SG
- Mfr#: 01036OT3E213T-SG
- High starting torque
- New ventilation system for improved thermal performance
- Robust design
- Regreasable bearings
- Motor frame painting system 500 hr salt spray resistant
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
W01 is a rolled steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.
WEG AC Motor, Continuous-Duty, Air Handling Motors, General Purpose HVAC Motors Application, 10 hp, 208/230/460 VAC, 26.5 to 24/12 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Open Drip-Proof Enclosure, 213/5T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 14.7 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 16.969 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 10 hp |
| Torque Rating | : | 14.7 ft-lb |
| Material | : | Rolled Steel |
| Amperage Rating | : | 26.5 to 24/12 A |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 16.969 in L |
| Rotation | : | CW/CCW |
| Application Type | : | Air Handling Motors, General Purpose HVAC Motors |
| Phase | : | 3 |
| Frame | : | 213/5T |
| Speed | : | 3600 rpm |
| Mounting Type | : | C-Face Footed |
| Enclosure Type | : | Open Drip-Proof |
DOCUMENTS
-
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_5018EP3ESS56CFL_Catalog.pdf
