01036ET3H215JM-W22

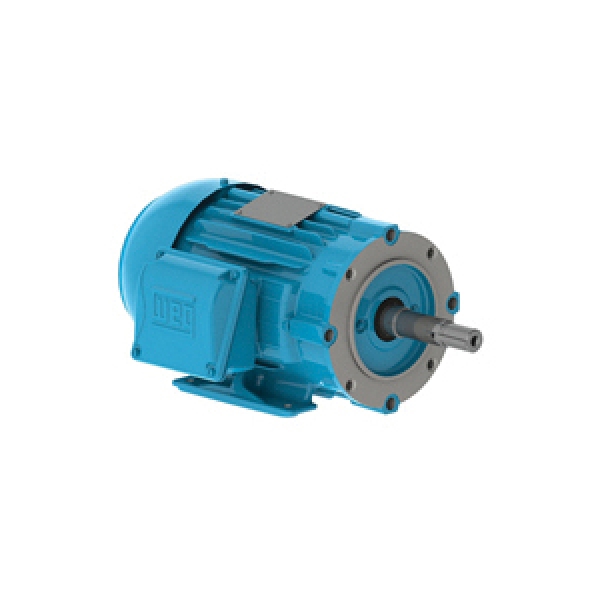

WEG 01036ET3H215JM-W22 Closed Couple Pump Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 575 VAC, 60 Hz, 3 ph Phase, 213/5JM Frame, 3520 rpm Speed, Footed Mount
- CP#:
- Item#: 01036ET3H215JM-W22
- Mfr#: 01036ET3H215JM-W22
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Gasketed conduit box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 10 hp, 575 VAC, 9.28 A, 60 Hz Frequency, 3 ph ph, 3520 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213/5JM Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 14.7 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 20.392 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 10 hp |
| Torque Rating | : | 14.7 ft-lb |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 9.28 A |
| Type | : | Closed Couple Pump Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.25 |
| Dimensions | : | 20.392 in L |
| Rotation | : | CW/CCW |
| Application Type | : | Jet Pump (JM/JP) Motors |
| Phase | : | 3 |
| Frame | : | 213/5JM |
| Speed | : | 3520 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01036ET3H215JM_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01036ET3H215JM_W22_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JPW22G_Catalog.pdf
