25015EP3OFP449TS-W22

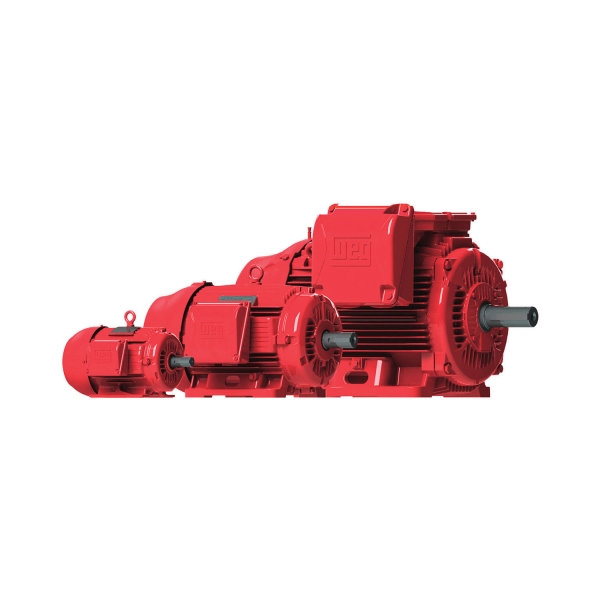

WEG 25015EP3OFP449TS-W22 Continuous-Duty Type IE2 AC Motor, Totally Enclosed Fan Cooled Enclosure, 250 hp, 380 VAC, 50 Hz, 3 ph Phase, 447/9TS Frame, 1480 rpm Speed, Footed Mount
- CP#:
- Item#: 25015EP3OFP449TS-W22
- Mfr#: 25015EP3OFP449TS-W22
- Developed to ensure maximum performance, economy and reliability
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty Type IE2, Fire Pump Motors, General Purpose AC Motors Application, 250 hp, 380 VAC, 340 A, 50 Hz Frequency, 3 ph ph, 1480 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 447/9TS Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 875 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 52.588 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 250 hp |
| Torque Rating | : | 875 ft-lb |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 340 A |
| Type | : | Continuous-Duty Type IE2 |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 52.588 in L |
| Rotation | : | CW/CCW |
| Application Type | : | Fire Pump Motors, General Purpose AC Motors |
| Phase | : | 3 |
| Frame | : | 447/9TS |
| Speed | : | 1480 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_05018ET3E326JPW22G_Catalog.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_25015EP3OFP449TS_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_25015EP3OFP449TS_W22_Specification_Sheet.pdf
