01012ET3E256TC-S

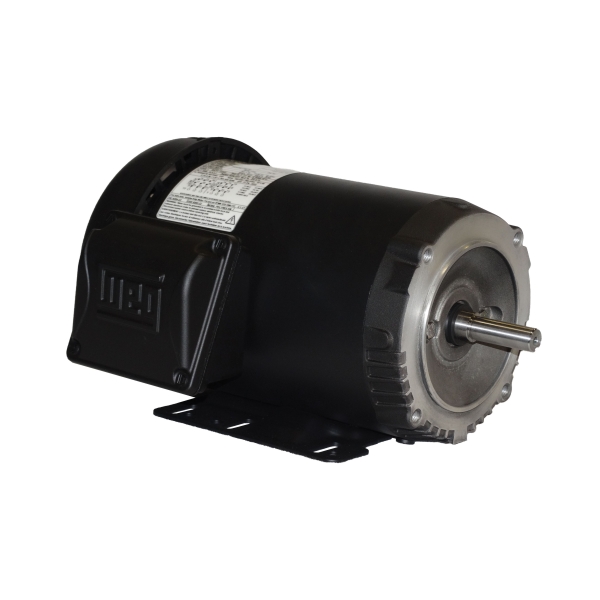

WEG 01012ET3E256TC-S Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 254/6TC Frame, 1175 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 01012ET3E256TC-S
- Mfr#: 01012ET3E256TC-S
- Aluminum endshields
- Cast iron flanges for improved strength
- Internal bolts, giving a clean surface to the motor
- Double shielded ball bearings
- Robust design
- IP55 rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 10 hp, 208/230/460 VAC, 30.5 to 27.6/13.8 A, 60 Hz Frequency, 3 ph ph, 1175 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 254/6TC Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 44.1 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 23.346 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 10 hp |
| Torque Rating | : | 44.1 ft-lb |
| Material | : | Rolled Steel |
| Amperage Rating | : | 30.5 to 27.6/13.8 A |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 23.346 in L |
| Rotation | : | CW/CCW |
| Application Type | : | General Purpose AC Motors |
| Phase | : | 3 |
| Frame | : | 254/6TC |
| Speed | : | 1175 rpm |
| Mounting Type | : | C-Face Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00518ET3EBMQ184TC_W2_Catalog.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01012ET3E256TC_S_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01012ET3E256TC_S_Specification_Sheet.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_3336OT1BW56_S_Warranty.pdf
