- WEG 01536ET3H254T-SG
01536ET3H254T-SG

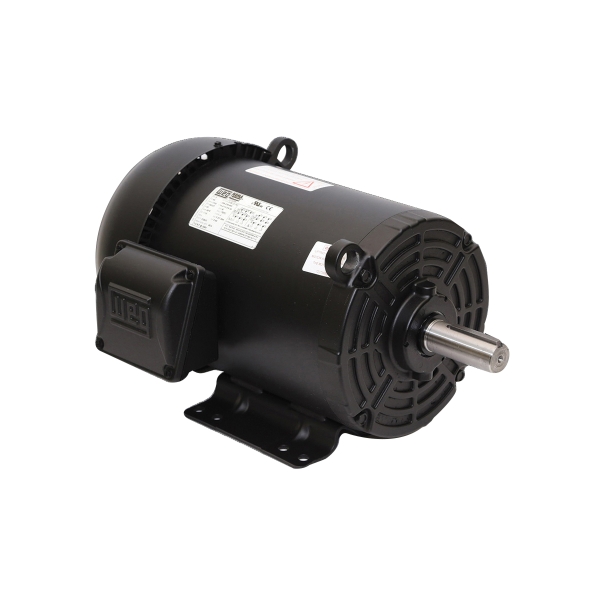

WEG 01536ET3H254T-SG Continuous-Duty AC Motor With Internal AEGIS® Ring, Totally Enclosed Fan Cooled Enclosure, 15 hp, 575 VAC, 60 Hz, 3 ph Phase, 254/6T Frame, 3600 rpm Speed, Footed Mount
- CP#:
- Item#: 01536ET3H254T-SG
- Mfr#: 01536ET3H254T-SG
- High starting torque
- New ventilation system for improved thermal performance
- Robust design
- Regreasable bearings
- Motor frame painting system 500 hr salt spray resistant
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, Air Handling Motors, General Purpose HVAC Motors Application, 15 hp, 575 VAC, 13.9 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 254/6T Frame, 1.15 Service Factor, Ball Bearing, Footed Mounting, Insulation Class: Class F, Rolled Steel, 22.559 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 15 hp |
| Material | : | Rolled Steel |
| Amperage Rating | : | 13.9 A |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Service Factor | : | 1.15 |
| Dimensions | : | 22.559 in L |
| Application Type | : | Air Handling Motors, General Purpose HVAC Motors |
| Phase | : | 3 |
| Frame | : | 254/6T |
| Speed | : | 3600 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_5018EP3ESS56CFL_Catalog.pdf
