VFS4300-3FZ

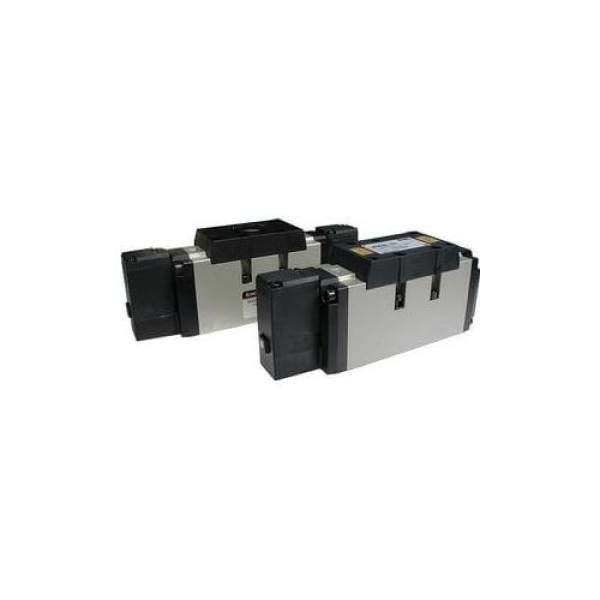

SMC® VFS4300-3FZ VFS 5-Port Valve, 101 psi Pressure, Aluminum Body
- CP#:
- Item#: VFS4300-3FZ
- Mfr#: VFS4300-3FZ
- Fluid, air and inert gas
- Operating pressure 0.1MPa to 1.0MPa
- Effective area (Cv) 1.7 to 3.6
- Coil rated voltage 100, 200 VAC 50/60Hz; 24VDC
- Response time 55 or less ms
- Ambient/fluid temp, -10 to +60 deg C
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, VFS4300-3FZ, Valve, 5-Port, Series: VFS, 101 psi Pressure, Class B Pressure Class, 14 to 140 deg F, Media: Air/Inert Gas, 3-Position Actuator, Aluminum Body, Metal Trim, 107 mm H x 62 mm W x 196.5 mm L Dimensions. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Actuator Type | : | 3-Position |
| Dimensions | : | 107 mm H x 62 mm W x 196.5 mm L |
| Media | : | Air/Inert Gas |
| Pressure Class | : | Class B |
| Series | : | VFS |
| Temperature Rating | : | 14 to 140 deg F |
| Trim Material | : | Metal |
| Type | : | 5-Port |
| Pressure Rating | : | 101 psi |
| Body Material | : | Aluminum |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_VFS4100_3FZ_Catalog.pdf
