SY7120-5DZ-02T

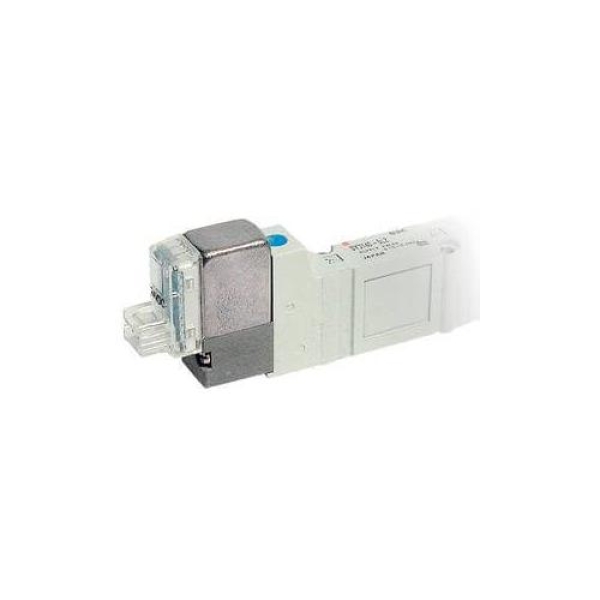

SMC® SY7120-5DZ-02T SY7000 5-Port Valve, 101 psi Pressure, 0.81, 0.93 Cv Flow Rate, Aluminum Body
- CP#:
- Item#: SY7120-5DZ-02T
- Mfr#: SY7120-5DZ-02T
- Fluid, air Operating pressure range (internal pilot) 0.1 - 0.7MPa
- external pilot is 100kPa to 0.7MPa
- external pilot, pilot pressure range form 0.25 - 0.7MPa
- Effective area mm sq (Cv) body ported 10.6 (0.59), base mounted 12.6 (0.7)
- Coil rated voltage 3, 5, 6, 12, 24VDC; 100, 110, 200, 220VAC
- Response time (0.5MPa) with o indicator light and surge voltage suppressor 32ms or less
- Ambient and fluid temperature 50 deg C
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, SY7120-5DZ-02T, Valve, 5-Port, Series: SY7000, 101 psi Pressure, 14 to 122 deg F, 0.81, 0.93 Cv Flow Rate, Pilot Solenoid Valve Actuator, Aluminum Body, 2.6 in H x 0.74 in W x 5.08 in L Dimensions. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Actuator Type | : | Pilot Solenoid Valve |
| Dimensions | : | 2.6 in H x 0.74 in W x 5.08 in L |
| Series | : | SY7000 |
| Temperature Rating | : | 14 to 122 deg F |
| Type | : | 5-Port |
| Pressure Rating | : | 101 psi |
| Flow Rate | : | 0.81, 0.93 Cv |
| Body Material | : | Aluminum |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_SS5Y5_20_03_00N_Catalog.pdf
