- NTN 51307
51307

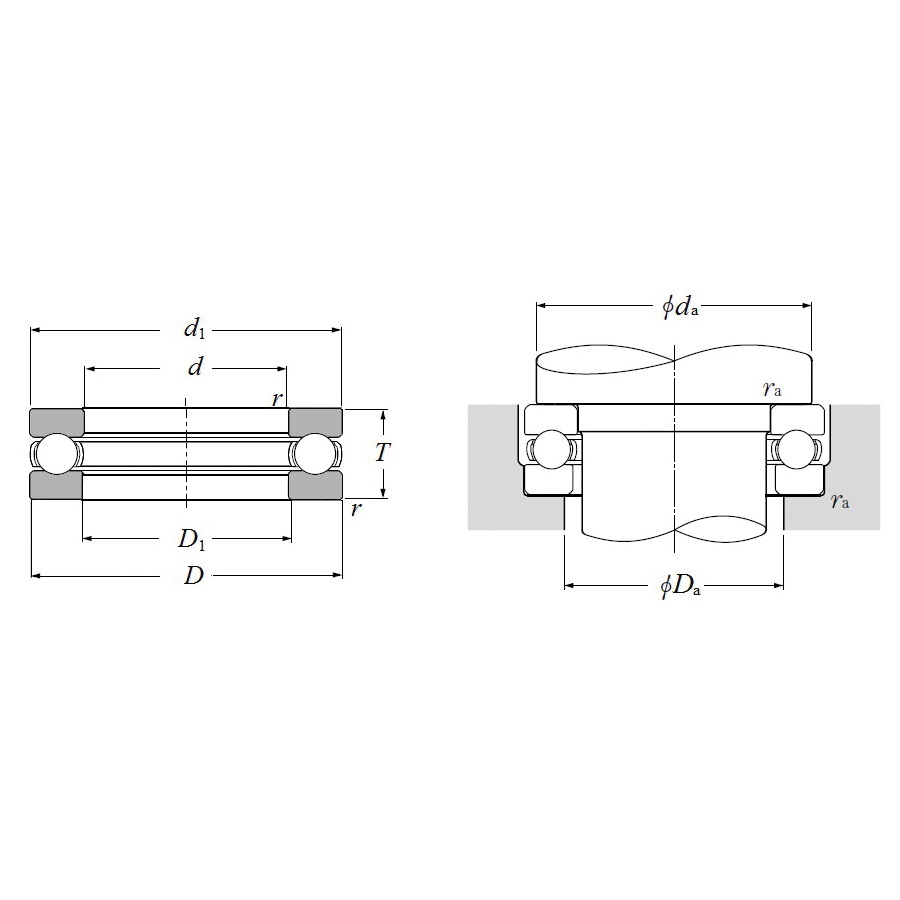

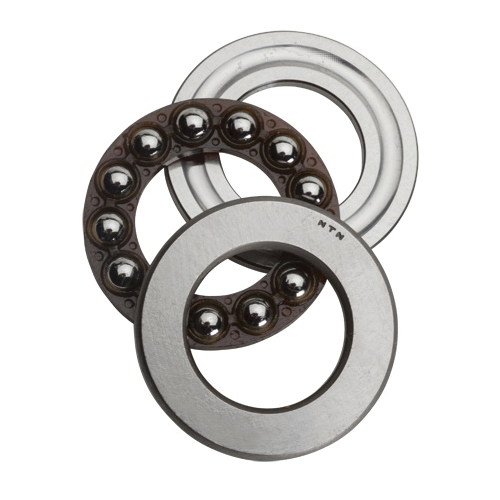

NTN 51307 Round Bore Thrust Ball Bearing, 35 mm Dia Bore, 68 mm OD, 1 Row, 24 mm W, 105000 N Load
- CP#:
- Item#: 51307NTN
- Mfr#: 51307
- UPC: 4547359307054
- Straight outer ring
- Open enclosure
- Steel ball
- Pressed steel cage
- CN radial clearance
- ISO class 0 precision rating
- 1 mm fillet radius
- 55500 N dynamic/105000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Single direction thrust bearings consist of two washers having ball grooves ground into their adjacent faces with balls and cages mounted between these grooves. They are normally equipped with either pressed or machined cages and are suitable for carrying thrust loads at moderate speeds.
NTN Thrust Ball Bearing, Round Bore, Series: 513, 35 mm Bore Dia, 68 mm Outside Dia, 1 Rows, 24 mm Width, Flat Back Face, Single Thrust Direction, 105000 N, High Carbon Chrome Steel Bearing, 2400 rpm Grease/3500 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | 513 |
| Face Type | : | Flat Back |
| Bearing Material | : | High Carbon Chrome Steel |
| Load Capacity | : | 105000 N |
| Maximum Speed | : | 2400 rpm Grease/3500 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 68 mm |
| Thrust Direction | : | Single |
| Width | : | 24 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/468/NTN_16001_Catalog.pdf
