- WEG 01036ES3ESA90LR
01036ES3ESA90LR

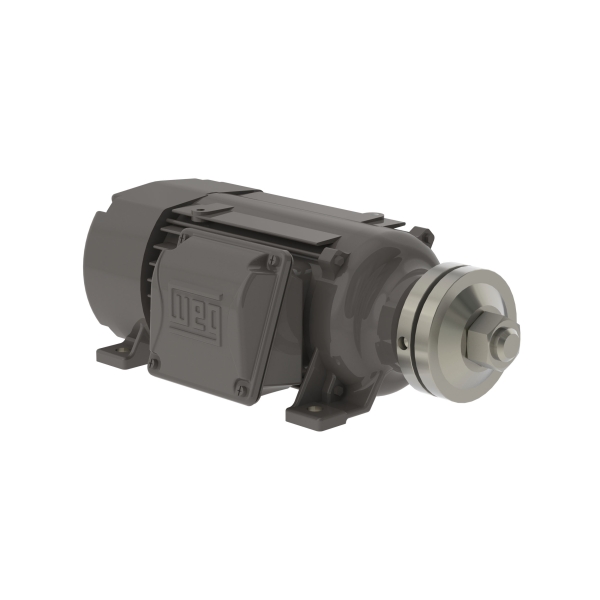

WEG 01036ES3ESA90LR Right Hand Thread Definite Purpose AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 90L Frame, 3480 rpm Speed, Footed Mount
- CP#:
- Item#: 01036ES3ESA90LR
- Mfr#: 01036ES3ESA90LR
- UPC: 7892304571071
- PG threaded terminal boxes
- Low profile
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG Definite Purpose AC Motor, Right Hand Thread, General Purpose AC Motors Application, 10 hp, 208/230/460 VAC, 27.2 to 24.6/12.3 A, 60 Hz Frequency, 3 ph ph, 3480 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 90L Frame, 24 mm Dia Shaft, CCW Rotation, 1 Service Factor, Ball Bearing, 14.9 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 26.476 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 10 hp |
| Torque Rating | : | 14.9 ft-lb |
| Material | : | Cast Iron |
| Amperage Rating | : | 27.2 to 24.6/12.3 A |
| Type | : | Right Hand Thread |
| Shaft Size | : | 24 mm Dia |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1 |
| Dimensions | : | 26.476 in L |
| Rotation | : | CCW |
| Application Type | : | General Purpose AC Motors |
| Phase | : | 3 |
| Frame | : | 90L |
| Speed | : | 3480 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01036ES3ESA90LR_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01036ES3ESA90LR_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_E01812EP3WAX71F3W2_Catalog.pdf
