00318NT3FVD182TC-W22

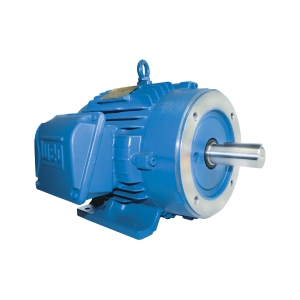

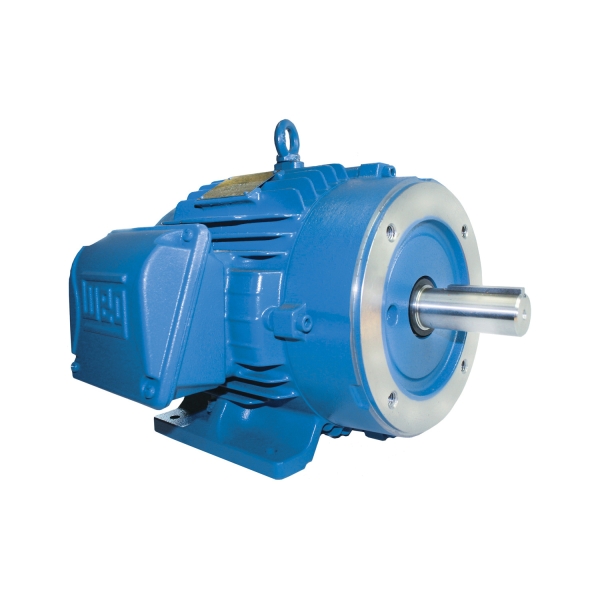

WEG 00318NT3FVD182TC-W22 Continuous-Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 3 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 182/4TC Frame, 1750 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 00318NT3FVD182TC-W22
- Mfr#: 00318NT3FVD182TC-W22
- Designed specifically for inverter operation for applications requiring 1000:1 constant torque turndown ratio
- NEMA design B
- Stainless steel nameplate laser etched with high contrast background
- Gasketed conduit box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, Vector (Inverter) Duty Motors Special Features, 3 hp, 230/460 VAC, 7.81/3.91 A, 60 Hz Frequency, 3 ph ph, 1750 rpm Speed, Totally Enclosed Nonvented (TENV) Enclosure, 182/4TC Frame, CW/CCW Rotation, 1 Service Factor, Ball Bearing, 8.88 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class H, Cast Iron, 1000:1 Constant Torque Speed, 16.569 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 3 hp |
| Torque Rating | : | 8.88 ft-lb |
| Material | : | Cast Iron |
| Amperage Rating | : | 7.81/3.91 A |
| Constant Torque Speed Range | : | 1000:1 |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class H |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1 |
| Dimensions | : | 16.569 in L |
| Rotation | : | CW/CCW |
| Special Features | : | Vector (Inverter) Duty Motors |
| Phase | : | 3 |
| Frame | : | 182/4TC |
| Speed | : | 1750 rpm |
| Mounting Type | : | C-Face Footed |
| Enclosure Type | : | Totally Enclosed Nonvented (TENV) |
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00318NT3FVD182TC_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00318NT3FVD182TC_W22_Specification_Sheet.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_5018EP3ESS56CFL_Catalog.pdf
