00312ET3E213T-S

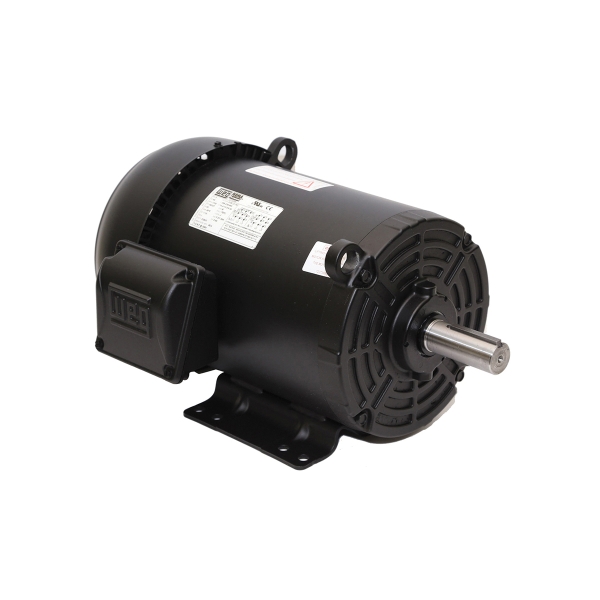

WEG 00312ET3E213T-S Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 213/5T Frame, 1175 rpm Speed, Footed Mount
- CP#:
- Item#: 00312ET3E213T-S
- Mfr#: 00312ET3E213T-S
- Aluminum endshields
- Cast iron flanges for improved strength
- Internal bolts, giving a clean surface to the motor
- Double shielded ball bearings
- Robust design
- IP55 rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 3 hp, 208/230/460 VAC, 9.22 to 8.34/4.17 A, 60 Hz Frequency, 3 ph ph, 1175 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213/5T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 13.2 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 19.291 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 3 hp |
| Torque Rating | : | 13.2 ft-lb |
| Material | : | Rolled Steel |
| Amperage Rating | : | 9.22 to 8.34/4.17 A |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 19.291 in L |
| Rotation | : | CW/CCW |
| Application Type | : | General Purpose AC Motors |
| Phase | : | 3 |
| Frame | : | 213/5T |
| Speed | : | 1175 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00312ET3E213T_S_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00312ET3E213T_S_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf
