00118XT3E143TC

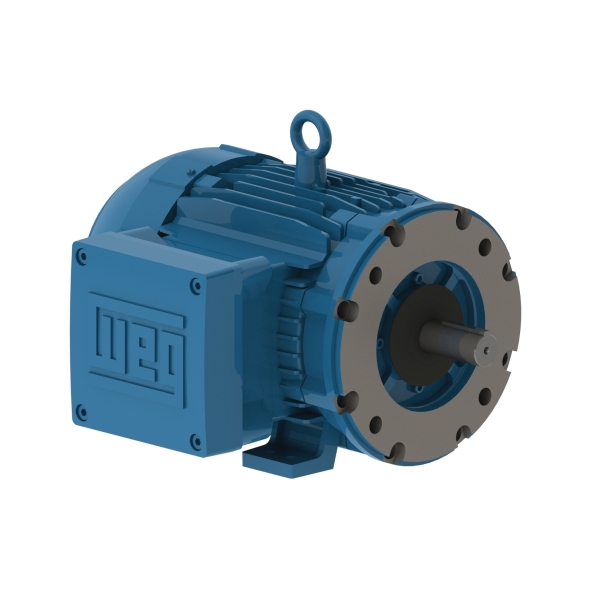

WEG 00118XT3E143TC AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 143TC Frame, 1800 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 00118XT3E143TC
- Mfr#: 00118XT3E143TC
- Stainless steel nameplate laser etched with high contrast background
- NPT threaded terminal box
- IP55 rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Water Circulator Motors Application, Explosion Proof AC Motors Special Features, 1 hp, 230/460 VAC, 1.43 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 143TC Frame, 1.15 Service Factor, 2.94 ft-lb Torque, C-Face Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 12.76 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 1 hp |
| Torque Rating | : | 2.94 ft-lb |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 1.43 A |
| Constant Torque Speed Range | : | 20:1 |
| Insulation Class | : | Class F |
| Temperature Rating | : | 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 12.76 in L |
| Application Type | : | Water Circulator Motors |
| Special Features | : | Explosion Proof AC Motors |
| Phase | : | 3 |
| Frame | : | 143TC |
| Speed | : | 1800 rpm |
| Mounting Type | : | C-Face Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_00518XT3E184TC_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf
