60BB15H 5/8

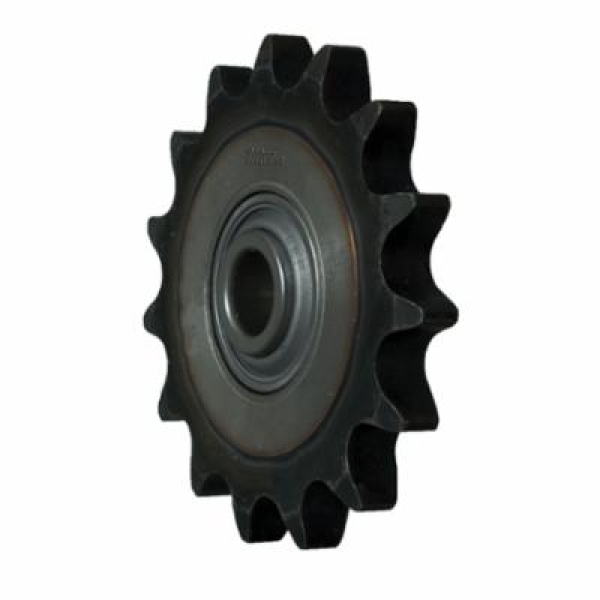

Martin 60BB15H 5/8 BB-H Ball Bearing Type A Idler Roller Chain Sprocket, 5/8 in Dia Bore, 3.98 in OD, 60 Chain, 15 Teeth, 3/4 in Pitch, Steel

  • Item#: 60BB15H 5/8
  • Mfr#: 60BB15H 5/8
  • UPC: 697950340500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin idlers are smooth-running and available in oil-impregnated, sintered bronze, extra-duty bearing press-fitted in sprocket and a hardened steel journal case for maximum resistance to wear. Steel sprockets used in Martin idlers are accurately machined (not stamped) the same as sprockets normally supplied for power transmission use. Martin can also alter existing sprockets and install bearings to make custom idlers.

Martin Idler Roller Chain Sprocket, Ball Bearing Type A, Series: BB-H, 5/8 in Bore Dia, 3.98 in Outside Dia, 60 Chain, 15 Teeth, 3/4 in Pitch, 3.607 in, 2.541 in Hub Dia, 0.72 in Length Through Bore, Steel

SPECIFICATIONS

Pitch      :      3/4 in
Series      :      BB-H
Bore Diameter      :      5/8 in
Outside Diameter      :      3.98 in
Chain Size      :      60
Number of Teeth      :      15
Material      :      Steel
Pitch Diameter      :      3.607 in
Length Through Bore      :      0.72 in
Hub Diameter      :      2.541 in
Type      :      Ball Bearing Type A

DOCUMENTS

  • pdf
    Brochure     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_35BB20H_5_8_Brochure.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_35BB20H_5_8_Catalog.pdf
