SKF®
61808-2RS1

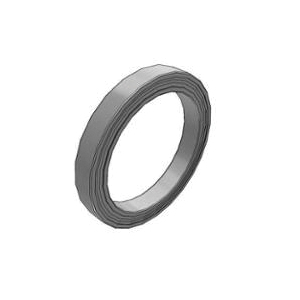

SKF® 61808-2RS1 61800 Narrow Deep Groove Ball Bearing, 40 mm Dia Bore, 52 mm OD, 7 mm W, 4.49 kN Load
- Item#: 61808-2RS1
- Mfr#: 61808-2RS1
- 4.49 kN dynamic/3.75 kN static load
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® Deep Groove Ball Bearing, Narrow, Series: 61800, 40 mm Bore, 52 mm OD, 7 mm Width, Double Seal Closure, 4.49 kN Load, Steel Bearing, NBR Seal, Steel Cage, 7500 rpm Maximum, -40 to 210 deg F
SPECIFICATIONS
| Bearing Material | : | Steel |
| Cage Material | : | Steel |
| Closure Type | : | Double Seal |
| Maximum Speed | : | 7500 rpm |
| Seal Material | : | NBR |
| Series | : | 61800 |
| Temperature Rating | : | -40 to 210 deg F |
| Type | : | Narrow |
| Bore Diameter | : | 40 mm |
| Outside Diameter | : | 52 mm |
| Width | : | 7 mm |
| Load Capacity | : | 4.49 kN |
