- LEESON® 128010.00
128010.00

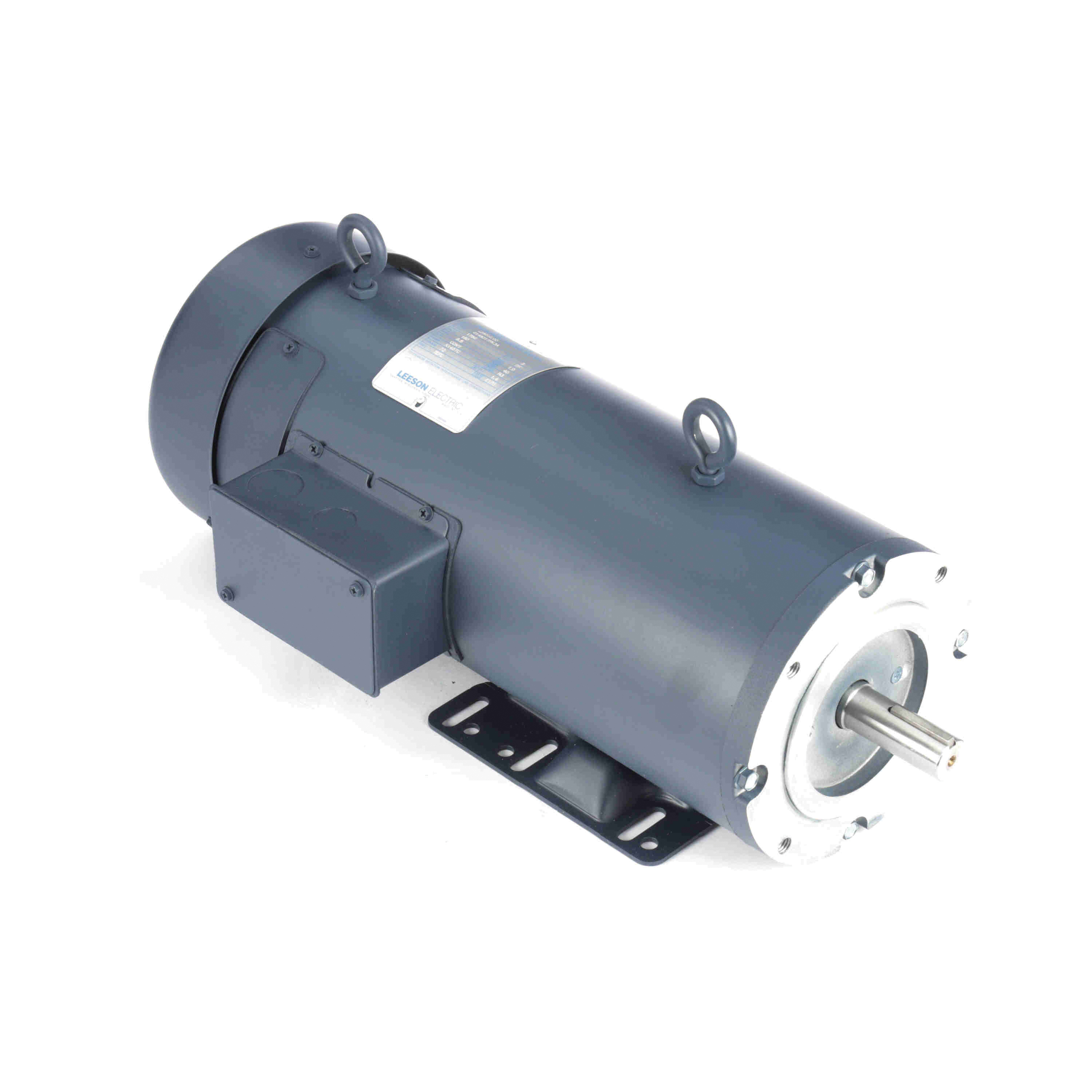

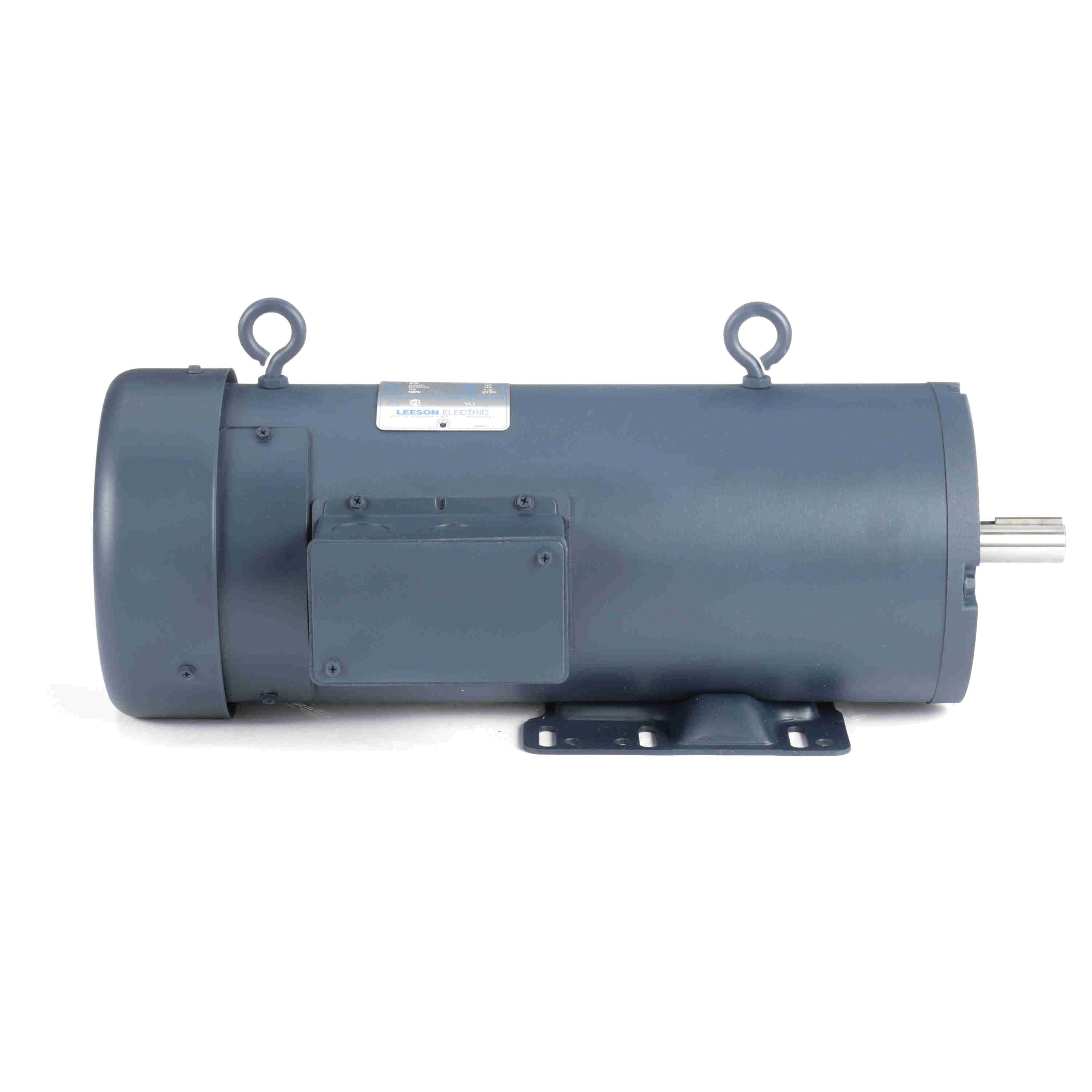

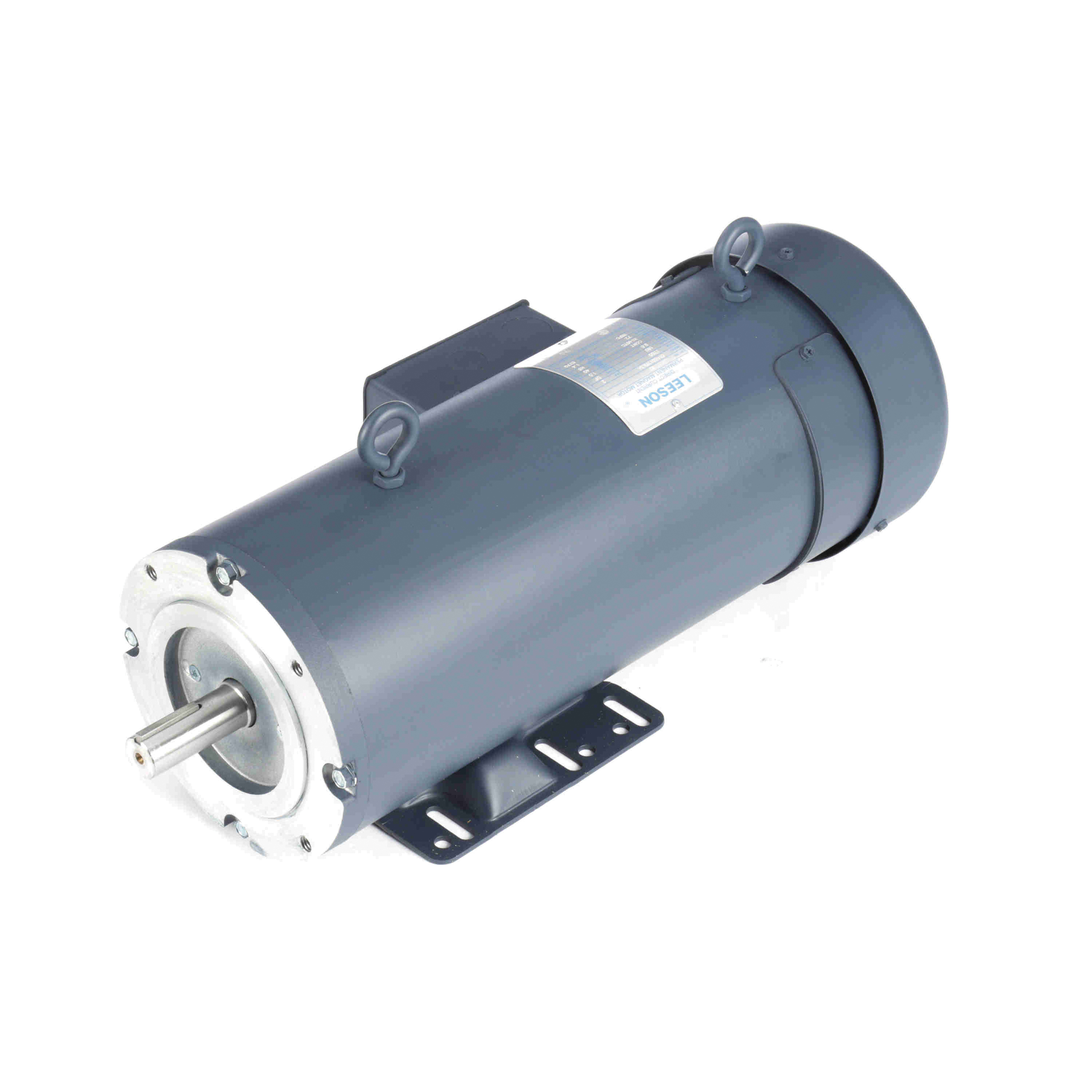

LEESON® 128010.00 4-Pole Continuous Duty DC Motor, 72 in-lb Torque, 1.49 kW Power Rating, 180 VDC, 9.5 A, K145TC Frame, 1750 rpm Speed
- CP#:
- Item#: 128010LEE
- Mfr#: 128010.00
- Brush holder design provides easy access to brushes
- Large oversized brushes assure long brush life
- Capable of dynamic braking
- PWM or SCR type controller rated
- High starting torque
- Permanently lubricated sealed ball bearings
- Higher hp and speed achievable using PWM type DC controls
- Dynamically balanced armatures
- 30:1 constant torque operation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
LEESON® DC Motor, 4-Pole Continuous Duty, 1.49 kW Power, 180 VDC, 9.5 A, 1750 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, K145TC Frame, 0.88 in Dia x 2.13 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 72 in-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class H, 19.34 in L x 8.77 in H Dimensions
SPECIFICATIONS
| Insulation Class | : | Class H |
| Dimensions | : | 19.34 in L x 8.77 in H |
| Number of Speeds | : | 1 |
| Bearing Type | : | Ball |
| Service Factor | : | 1 |
| Rotation | : | Reversible |
| Mounting Type | : | C-Face/Rigid Base |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
| Temperature Rating | : | 40 deg C |
| Type | : | 4-Pole Continuous Duty |
| Shaft Size | : | 0.88 in Dia x 2.13 in L |
| Torque Rating | : | 72 in-lb |
| Amperage Rating | : | 9.5 A |
| Frame | : | K145TC |
| Speed | : | 1750 rpm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_12801000_Specification_Sheet.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Brochure.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Warranty.pdf -
Instruction/Installation Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rollway_3203ZZC3_Installation_Sheet.pdf
