Browning® YSB10B50-20
Browning®

Browning® YSB10B50-20

loading
Browning®

YSB10B50-20

Browning® 1228204 MPB Straight Tooth Bevel Gear, 10 Diametral Pitch, 20 deg Pressure Angle, 50 Teeth, 5 in Dia Pitch, 0.7 in W Face, 3/4 to 1-1/4 in Dia Bore, Steel

  • Item#: YSB10B50-20
  • Mfr#: YSB10B50-20
    • Bevel and miter gears develop axial thrust and adequate bearing support must be provided
    • Miter gears must be run in sets of two or more gears with the same pitch, pressure angle and number of teeth
    • Spiral bevel and miter gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
    • Spiral bevel and miter gears must be run in sets of mating gears with opposite hand spiral
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

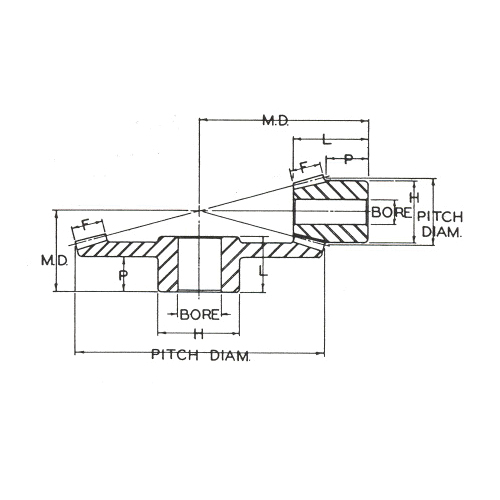

Browning® Bevel Gear, MPB Straight Tooth, 3/4 to 1-1/4 in Bore, 2:1 Gear Ratio, 50 Teeth, 10 Diametral Pitch, 5 in Pitch Diameter, 0.7 in Face Width, 2 in Diameter Hub, 1-19/32 in Hub Projection, 1-19/32 in Overall Length, 20 deg Pressure Angle, Steel

SPECIFICATIONS

Gear Ratio      :      2:1
Hub Diameter      :      2 in
Hub Projection      :      1-19/32 in
Overall Length      :      1-19/32 in
Type      :      MPB Straight Tooth
Diametral Pitch      :      10
Pressure Angle      :      20 deg
Number of Teeth      :      50
Pitch Diameter      :      5 in
Face Width      :      0.7 in
Bore Diameter      :      3/4 to 1-1/4 in
Material      :      Steel
