Browning® 84H100SF

Browning® 84H100SF



Browning® Gearbelt® 3513843 Type B Arm Synchronous Timing Pulley, 1/2 to 2-15/16 in QD Bore, 13.315 in OD, 84 Grooves, 13.369 in Dia Pitch, 1-5/16 in W Face

  • Item#: 84H100SF
  • Mfr#: 84H100SF
    • Constant speed no slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
    • Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
    • Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
    • High modulus strength member, needs minimum take-up
    • Freedom from initial belt tension, reduces bearing loads, increases life
    • Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
    • Less heat, because Gearbelt® drives generate virtually no friction
    • No lubrication required
    • Wide load capacity range
    • Wide belt speed range
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

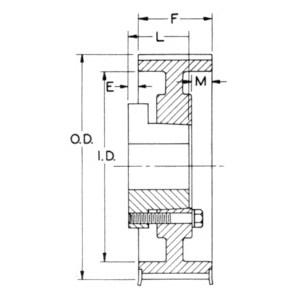

Browning® Gearbelt® Synchronous Timing Pulley, Type B Arm, QD Bore, 1/2 to 2-15/16 in Bore, 13.315 in OD, 13.369 in Pitch Diameter, 84 Grooves, 1/2 in Pitch, 1-5/16 in Face Width, SF Bushing, For Use With: 1 in W Type H100 Belt, Cast Iron


Bushing Type      :      SF
Material      :      Cast Iron
Pitch      :      1/2 in
Suitable For Use With      :      1 in W Type H100 Belt
Type      :      Type B Arm
Bore Diameter      :      1/2 to 2-15/16 in
Bore Type      :      QD
Outside Diameter      :      13.315 in
Number of Grooves      :      84
Pitch Diameter      :      13.369 in
Face Width      :      1-5/16 in
