4S8V180

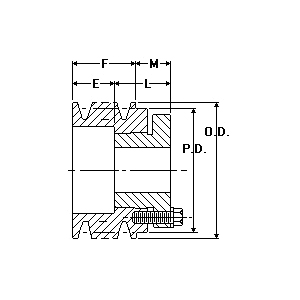

Browning® 1063312 Type 15 Web Multiple Sheave, 1.69 to 4.25 in Split Taper Bore, 18 in OD, 4 Grooves, 17.8 in Dia Pitch, 4-7/8 in W Face
- Item#: 4S8V180
- Mfr#: 4S8V180
- Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- All sheaves are statically balanced to assure smooth and vibration free performance
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
Browning® Multiple Sheave, Type 15 Web, Split Taper Bore, 1.69 to 4.25 in Bore, 18 in OD, 17.8 in Pitch Diameter, 4 Grooves, 4-7/8 in Face Width, S1 Bushing, 4-7/8 in Overall Length, For Use With: GripBelt® 8V Cross Section V-Belt, Cast Iron
SPECIFICATIONS
| Bushing Type | : | S1 |
| Material | : | Cast Iron |
| Overall Length | : | 4-7/8 in |
| Suitable For Use With | : | GripBelt® 8V Cross Section V-Belt |
| Type | : | Type 15 Web |
| Bore Diameter | : | 1.69 to 4.25 in |
| Bore Type | : | Split Taper |
| Outside Diameter | : | 18 in |
| Number of Grooves | : | 4 |
| Pitch Diameter | : | 17.8 in |
| Face Width | : | 4-7/8 in |
