Browning® 3C300R

Browning® 3C300R



Browning® 1013762 Type 13 Arm Multiple Sheave, 1.13 to 3.75 in Split Taper Bore, 30.4 in OD, 3 Grooves, 30.4 in Dia Pitch, 3-1/4 in W Face

  • Item#: 3C300R
  • Mfr#: 3C300R
    • Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
    • All sheaves are statically balanced to assure smooth and vibration free performance
    • Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading


Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

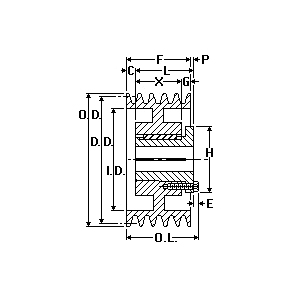

Browning® Multiple Sheave, Type 13 Arm, Split Taper Bore, 1.13 to 3.75 in Bore, 30.4 in OD, 30.4 in Pitch Diameter, 3 Grooves, 3-1/4 in Face Width, R1 Bushing, 3-25/32 in Overall Length, For Use With: GripBelt® C Cross Section V-Belt, Cast Iron


Bushing Type      :      R1
Material      :      Cast Iron
Overall Length      :      3-25/32 in
Suitable For Use With      :      GripBelt® C Cross Section V-Belt
Type      :      Type 13 Arm
Bore Diameter      :      1.13 to 3.75 in
Bore Type      :      Split Taper
Outside Diameter      :      30.4 in
Number of Grooves      :      3
Pitch Diameter      :      30.4 in
Face Width      :      3-1/4 in
