Baldor-Reliance EMM3714

Baldor-Reliance EMM3714

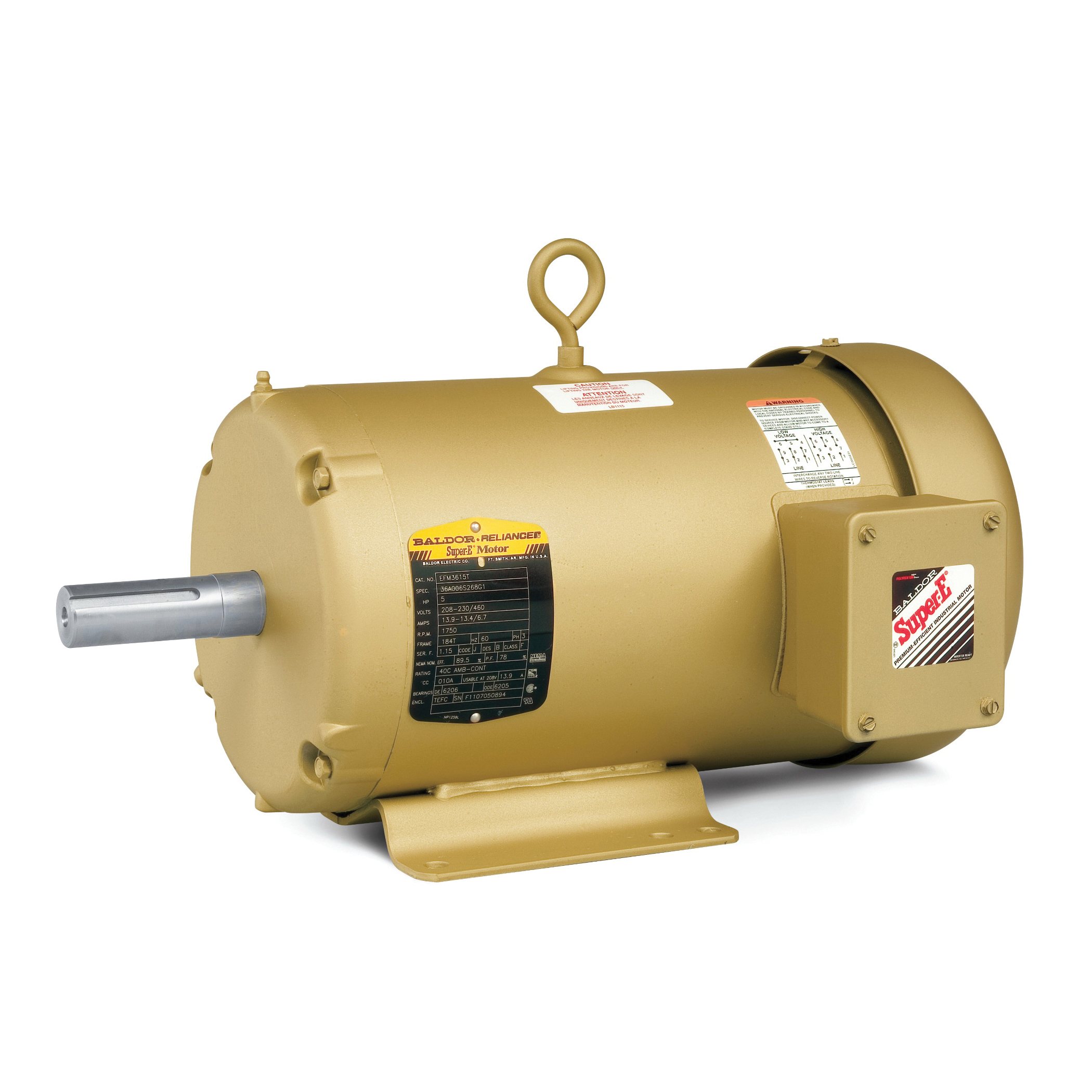

Baldor-Reliance EMM3714 Type 3752M Continuous Duty Frame Motor, Totally Enclosed Fan Cooled (TEFC) Enclosure, 208/230/460 VAC, 60 Hz, 3 ph Phase, D132M Frame, 1770 rpm Speed, Foot/Rigid Mount

  • Item#: EMM3714
  • Mfr#: EMM3714
  • UPC: 781568526798
    • Ball bearings with locked DE bearing
    • Heavy gauge steel frames
    • Gasketed conduit box
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading


Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Baldor-Reliance Frame Motor, Type 3752M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors Application, IEC Metric Motors Special Features, 208/230/460 VAC, 25.4/24/12 A, 60 Hz Frequency, 3 ph, 1770 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, D132M Frame, 1.497 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 30 ft-lb Torque, Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 20.29 in L x 12.8 in W x 12.37 in H Dimensions


Amperage Rating      :      25.4/24/12 A
Bearing Type      :      Ball
Dimensions      :      20.29 in L x 12.8 in W x 12.37 in H
Insulation Class      :      Class F
Material      :      Steel
Number of Speeds      :      1
Rotation      :      Reversible
Service Factor      :      1.15
Shaft Size      :      1.497 in
Temperature Rating      :      40 to 76 deg C
Torque Rating      :      30 ft-lb
Type      :      Type 3752M Continuous Duty
Application Type      :      General Purpose AC Motors, Fan & Blower Motors
Special Features      :      IEC Metric Motors
Voltage Rating      :      208/230/460 VAC
Frequency Rating      :      60 Hz
Phase      :      3
Frame      :      D132M
Speed      :      1770 rpm
Mounting Type      :      Foot Rigid
Enclosure Type      :      Totally Enclosed Fan Cooled
